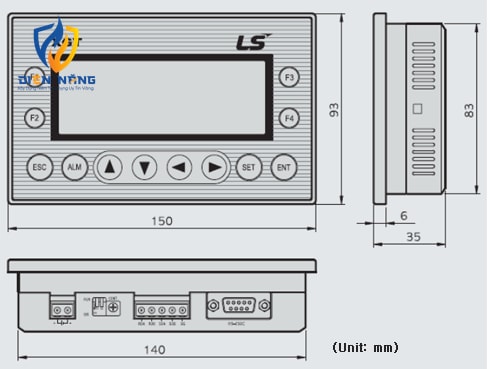

XP10 Minimum-sized XGT Panel XP10 using full-featured GUI programming tool of the XGT panel, the user can configure athe system easily. LS ELECTRIC’s know-how reinforces your cost-competitiveness with economic HMI and its various functions and strong reliability can realize system operation at its extreme. Contact us Features 1) Screen : 192×64 Graphic STN LCD 2) System RAM : 1000 words 3) Flash memory : Program/Parameter back up 4) Communication : Half-duplex comm. • Baud rate : 1200~115200 bps • Master/slave setting available • RS-232C/RS-485 2 CH separate to use 5) Power reguirements • 24 V input or 5 V direct input by LS PLC 6) Various fuction key • ESC, ALM, SET, ENT, F1~F4, Arrow keys 7) Panel Editor • Easy programming and HW setting Dimensions – XP10 XP10 LS ELECTRIC Vietnam Specification More Information ItemSpecificationReferences XP10BKA/DCXP10BK/DC Input voltage5VDCDC 4.9 ~ 5.1 (RS-232C port)3 24VDCDC 21.6 ~ 26.4 (DC Input connector) Consumption currentLess than 200mA DisplayLED back-light (192×64 Dots) Communication interfaceRS-232C, RS-422/485Can be used independently Flash memory256K bytes LanguageDefault English, Can be swithed to Korean/Chinese/Russian RTCNoneSupports Download specification115,200 bps Keys12 Keys (F1~F4, ESC, ALM, ▲,▼,◀,▶, SET, ENT) System memorySystem areaS000 ~ S899 (900Word)Latch area setting available for XP10BK/DC type System flagS900 ~ S999 (100Word)
| RTC | None | Supports |
|---|---|
| Item | Specification | References |
| Keys | 12 Keys (F1~F4, ESC, ALM, ▲,▼,◀,▶, SET, ENT) |
| 24VDC | DC 21.6 ~ 26.4 (DC Input connector) |
| Display | LED back-light (192×64 Dots) |
| Language | Default English, Can be swithed to Korean/Chinese/Russian |
| 1) Screen | 192×64 Graphic STN LCD |
| Baud rate | 1200~115200 bps |
| XP10BKA/DC | XP10BK/DC |
| System flag | S900 ~ S999 (100Word) |
| Flash memory | 256K bytes |
| 2) System RAM | 1000 words |
| Input voltage | 5VDC |
| System memory | System area |
| 3) Flash memory | Program/Parameter back up |
| Thương hiệu | LS Electric |
| 4) Communication | Half-duplex comm. |
| Consumption current | Less than 200mA |
| S000 ~ S899 (900Word) | Latch area setting available for XP10BK/DC type |
| Download specification | 115,200 bps |
| Communication interface | RS-232C, RS-422/485 | Can be used independently |
| DC 4.9 ~ 5.1 (RS-232C port) | 3 |
Minimum-sized XGT Panel XP10 using full-featured GUI programming tool of the XGT panel, the user can configure athe system easily. LS ELECTRIC’s know-how reinforces your cost-competitiveness with economic HMI and its various functions and strong reliability can realize system operation at its extreme. Contact us Features 1) Screen : 192×64 Graphic STN LCD 2) System RAM : 1000 words 3) Flash memory : Program/Parameter back up 4) Communication : Half-duplex comm. • Baud rate : 1200~115200 bps • Master/slave setting available • RS-232C/RS-485 2 CH separate to use 5) Power reguirements • 24 V input or 5 V direct input by LS PLC 6) Various fuction key • ESC, ALM, SET, ENT, F1~F4, Arrow keys 7) Panel Editor • Easy programming and HW setting Dimensions – XP10 XP10 LS ELECTRIC Vietnam Specification More Information ItemSpecificationReferences XP10BKA/DCXP10BK/DC Input voltage5VDCDC 4.9 ~ 5.1 (RS-232C port)3 24VDCDC 21.6 ~ 26.4 (DC Input connector) Consumption currentLess than 200mA DisplayLED back-light (192×64 Dots) Communication interfaceRS-232C, RS-422/485Can be used independently Flash memory256K bytes LanguageDefault English, Can be swithed to Korean/Chinese/Russian RTCNoneSupports Download specification115,200 bps Keys12 Keys (F1~F4, ESC, ALM, ▲,▼,◀,▶, SET, ENT) System memorySystem areaS000 ~ S899 (900Word)Latch area setting available for XP10BK/DC type System flagS900 ~ S999 (100Word)
