iXP2H Series (Loại tay cầm)

Tổng quan

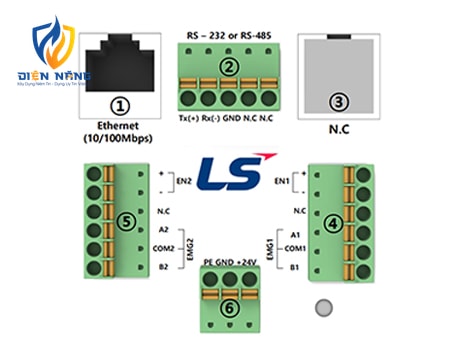

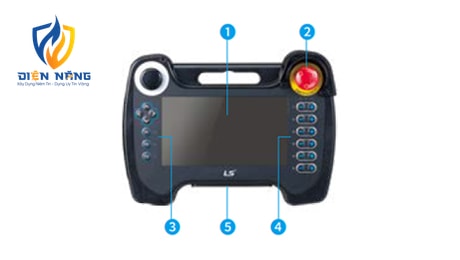

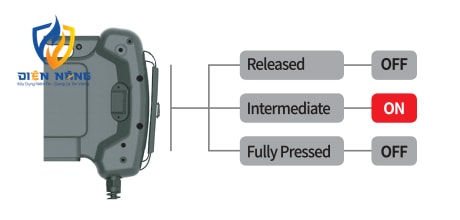

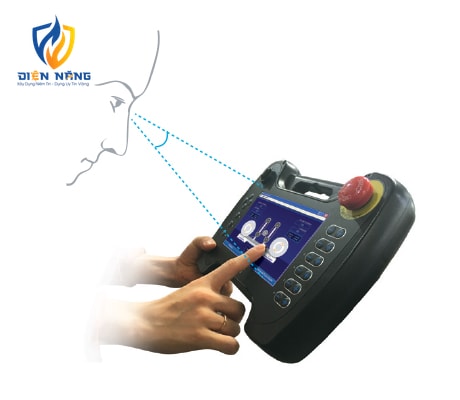

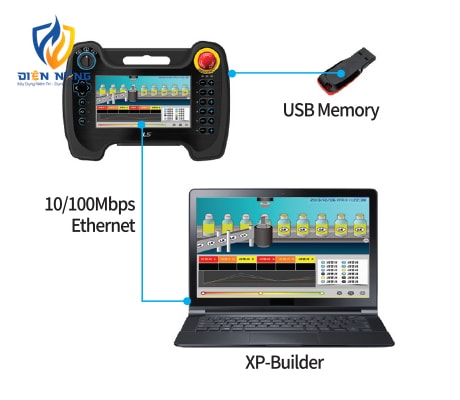

iXP2H Series (Loại tay cầm) New Handyheld HMI iXP2H Series Contact us Features 3 – Position Enable Switch Clear Visibility • Excellent visibility with high definition and wide screen view • 1024 X 600 resolution • 16M color Project Transfer • Easy project creation by XP-Builder • Convenient downloading/uploading of project files via USB port and ethernet (Multi-language supported) System configuration and features Front ① TFT-LCD 1024 x 600 TFT LCD, 16.7M color display Resistive overlay ② Emergency Stop Switch Immediately stops the control device or turns off the power as a safety feature ③ Left Keypad Direction key F1, F2, F3: User defined ④ Right Keypad User defined * Generally used as shortcut key of each axis of robot. ⑤ Extension device Slot of the USB extension device • When shipped, it is fastened with a separate cover. • When used, the cover can be removed witha Phillips head(+) screwdriver for use. Device detail ⑥ Reset Switch Switch for resetting the system ⑦ Debug Port A debugging port for developers ⑧ USB Host Connect to USB memory: Backup and send logging, recipe, alarm, and project data. Connect to user interface: Use the mouse and keyboard. ⑨ USB Device(option) USB device port(unsupported) ⑩ SD – Card Software update SD memory (store data) Rear ⑪ Enable Switch Released : Disable Intermediate : Enable Fully Pressed : Disable Junction box ① Ethernet Port Ethernet : 10Base-T/100Base-TX/1000Base-T • Connector for Ethernet connection ② Serial terminal block RS-485/232C communication connector • 0702D(for RS-232 model): Tx, Rx, GND • 0704D(for RS-485 model): TRx+, TRx- ③ Switch 2 terminal block Signal that is controlled from the front side switch of the product. • Enable, Emergency(A contact, B contact) switch ④ Switch 1 terminal block Signal that is controlled from the front side switch of the product. • Enable, Emergency(A contact, B contact) switch ⑤ N.C Not used ⑥ Power terminal block DC 24 V input terminal block Specification More Information ModeliXP2H-0702D SeriesiXP2H-0704D Series Display typeTFT color LCD Screen size7” Resolution1024 x 600 pixels Color indication24-bit color (16.7M colors) BacklightLED method, Automatic On/Off support Backlight lifetime50,000 hours Touch panelResistive overlay (Pressure type) AudioMagnetic buzzer (12Ø 85 dB) ProcessorARM Cortex-A9 800 MHz, single core MemoryFlash8 GB (Small memory: 128 MB) Operating RAM1 GB Backup RAM1 MB Backup typeDate/time data, logging, alarm, recipe data, non-volatile device BatteryCR1220 (3.0V/210 mAh, Around 3 years/25℃) Ethernet1 x 10Base-T/100Base-TX USB host1 x USB 2.0 (Below x 1) RS-232C1 x RS-232C (Terminal block)- RS-485-1 x RS-485 (Terminal block) Multiple languagesSimultaneous display of 12 languages AnimationGIF format support RecipeSupported Data loggingSupported Script launcherSupported Standard certificationCE, KC Protection standardIP42 (Front) Dimensions (mm)195×270×72 (Excluding cables) PowerDC 24 V ±5% Power consumption (W)12 Weight (Kg)1.0 (Excluding cables)
