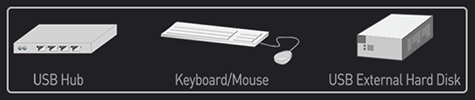

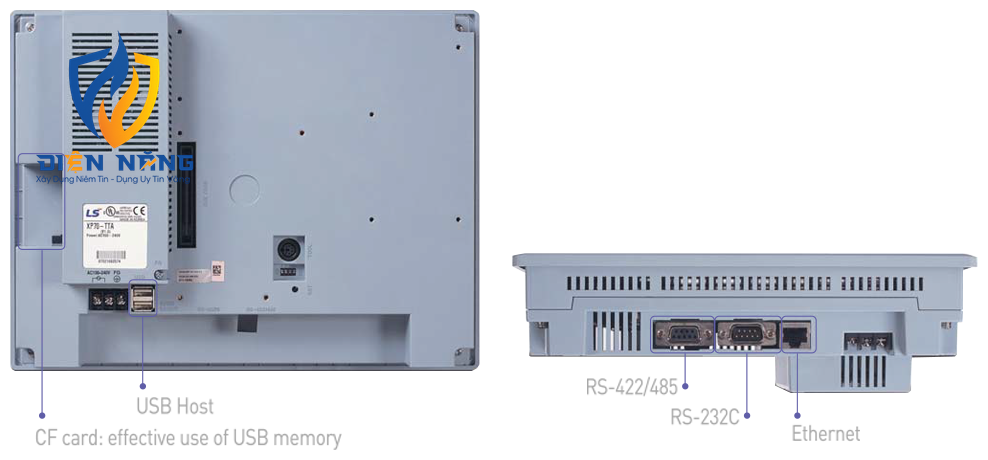

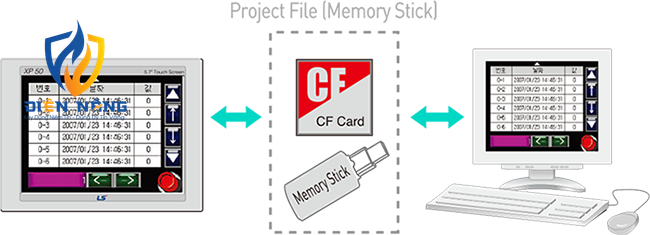

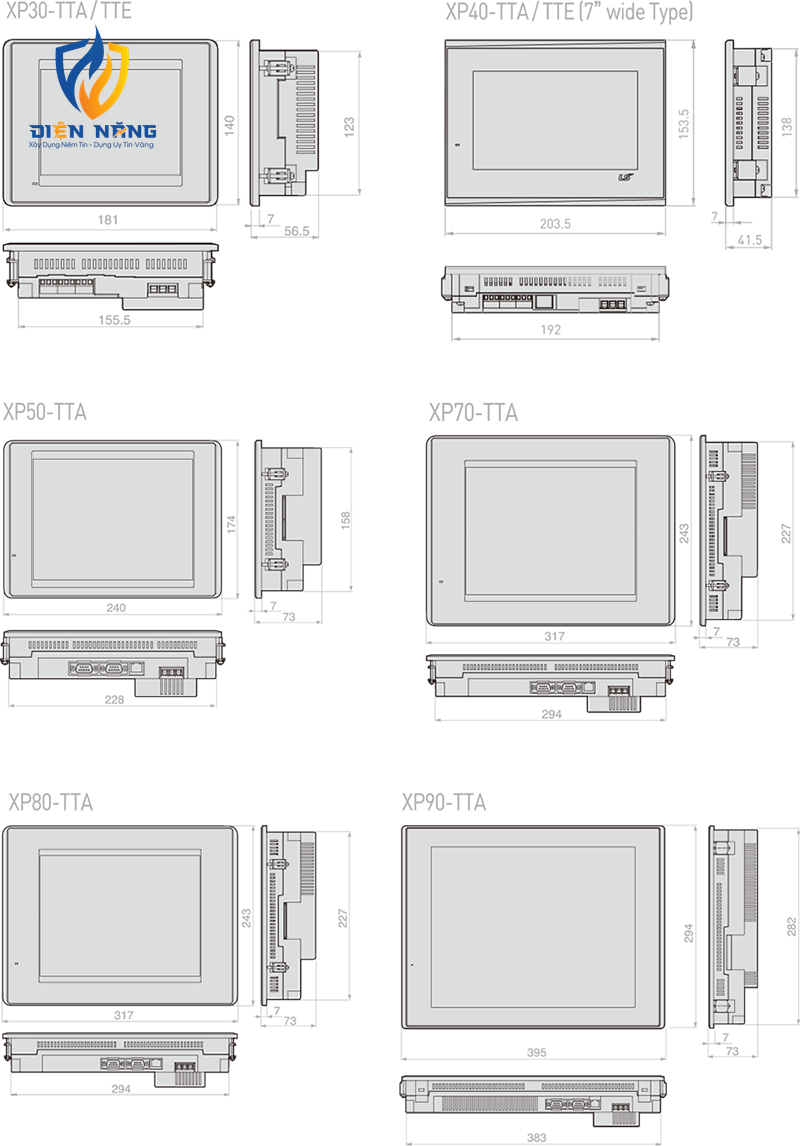

XP Series (EOL) Contact us Features USB Host • 2 USB interface channels • Various access devices can be used using the USB I/F. • Access to mouse, keyboard, a USB external hard disk, barcode reader, and USB hub is possible. Continuous upgrades and developments to cope with other drivers are in the works. A type USB Cable (XPO-USBC) • USB cable is used for screen data transmission and XP-Runtime updates. • The versions before XP-Builder 1.30 are not installed with the USB driver, thus must be installed. Effective Use of USB Memory • PLC data can be saved in a CF card or USB memory. If necessary, they are converted into a CSV format to be used to prepare daily and monthly reports. • When drawing files using the XP-Builder are saved in a CF card or a USB memory and copied to the XGT Panel, they can be executed without being sent via cables. • When there are several XGT Panels, one CF card or USB memory can be used to copy each XGT panel, allowing a setup. • A CF card or a USB memory can be used for engine updates and upload/download of drawing files. Dimensions Specification General Information Specifications ItemDescriptionStandard Ambient Temperature0℃∼+50℃ Storage Temperature-20℃∼+60℃ Ambient Humidity10∼85%RH, without dew condensation Storage Humidity10∼85%RH, without dew condensation Vibration Resistance-20℃∼+60℃Counts FrequencyAccelerationAmplitude10 times each direction (X, Y and Z)IEC 61131-2 5≤ f < 9㎐-3.5mm 9 ≤ f ≤ 150㎐9.8m/s 2- Continuous Vibration FrequencyAccelerationAmplitude 5≤ f < 9㎐-1.75mm 9 ≤ f ≤ 150㎐4.9m/s 2- Shock ResistanceMaximum shock acceleration: 147m/s 2 (15g) Authorization time: 11㎳ Pulse waveform: Half-sine wave pulse (3 times each of X,Y and Z)IEC 61131-2 Noise ResistanceSquare wave impulse noiseAC: ±1,500V DC: ±1,000VLS ELECTRIC Standards Electrostatic dischargeVoltage: 6 kV (Contact discharge)IEC 61131-2, IEC 61000-4-2 Radiated electromagnetic field noise27 ~ 500MHz, 10V/mIEC 61131-2, IEC 61000-4-3 Fast transient/Burst noisePower module: 2 kV, Communication interface: 1kVIEC 61131-2, IEC 61000-4-4 Operating AmbienceFree from corrosive gas and excessive dust Altitude2,000m (6,562ft) or below Pollution Degree2 or under Cooling MethodNatural air-cooling More Information Model TypeXP30-BTE/DCXP30-BTA/DCXP30-TTE/DCXP30-TTA/DCXP40-TTE/DCXP40-TTA/DCXP50-TTA/DCXP70-TTA/AC XP70-TTA/DCXP80-TTA/AC XP80-TTA/DCXP90-TTA/AC MonoColor Display ElementMono Blue LCDTFT Color LCD Screen Size14cm (5.7”)17.7cm (7”)21cm (8.4”)26cm (10.4”)31cm (12.1”)38cm (15” Resolution320×240800×480640×480800×6001024×768 Color8-column Gray Scale256 colors65,536 colors65,536 colors BacklightLED modeLED mode(can be replaced), Auto On/Off 50,000 hours60,000 hours30,000 hours50,000 hours60,000 hours ContrastAdjustableFixed Brightness230cd/㎡600cd/㎡280cd/㎡480cd/㎡430cd/㎡400cd/㎡450cd/㎡ Viewing AngleUp/Down (Degree)20/4080/8070/7050/6050/6045/6545/7560/50 Left/Right (Degree)45/4580/8065/6565/6565/6565/6575/75 Touch Panel4-wire system, analogueAnalog resistive8-wire system, analogue Movement LEDGreen: Normal RUN (Monitoring & drawing data download) Red: Error (Communication error & drawing data error) MemoryScreen Data4MB10MB4MB10MB4MB10MB10MB20MB Backup Data128KB512KB128KB512KB128KB512KB Ethernet-1ch, 10/100Base-T-1ch, 10/100Base-T-1ch, 10/100Base-T USB InterfaceUSB Hostx1USB Hostx2USB Hostx1USB Hostx2USB Hostx1USB Hostx2 SerialRS-232C2ch(1 port for PC communication) RS-422/4851ch, 422/485 optional mode CF Card Interface-CF card (TAPE-1)×1-CF card (TAPE-1)×1-CF card (TAPE-1)×1 AUX Interface-Optional-Optional-Optional CertificationCE, UL, KC ProtectionIP65 (Front Water Proof Structure) Size(W×H×D)mm181x140x56.5181x140x66.5181x140x56.5181x140x66.5203.5x153.5x41.5240x174x73317x243x73395x294x73 Panel Cut (W×H)mm155.0 x 123.5192 x 138228.5 x 158.5294.5 x 227.5383.5 x 282.5 Weight (kg)0.620.750.620.752.22.41.42.22.43.9 PowerRated VoltageDC 24VAC100~220V, DC 24VAC100~220V Permitted VoltageAC-MIN 85 VAC, MAX 264 VAC DCMIN 19.2 VDC, MAX 28.8 VDC- Power Consumption (W)AC-21.831.931.9 DC9.716.99.617.49.89.818.720.125.7-
