Tổng quan

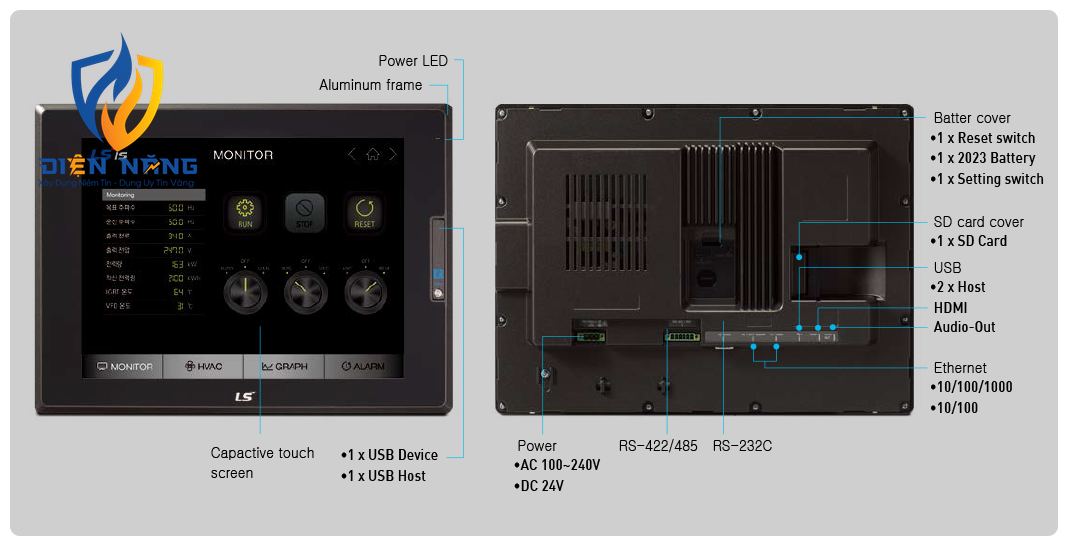

iXP2 Series High functioning, user-friendly, and robust choice for your system, iXP2 Contact us Features High functioning, user-friendly, and robust choice for your system, iXP2 Responsive touch screen Use touch screen either with bare hands or with gloves. Dual-Core CPU offers high-speed communication and processing Better performance than ever with enhanced serial communication, CPU processing, memory access, and vector/raster graphic processing Multiple interface methods to cope with the Internet of Things Ethernet 2ch., HDMI/Audio output, USB host/device, multimedia (video) Multi-touch and gesture-control screens Multi-touch maximizes operating stability and safety. Use gesture-control to view logging trend graphs and to change screens. Robust IP66 aluminum frame Reinforced protection against water and dust. Conforms to NEMA 4X standard. One-to-one interchangeability with existing iXP series Offers equivalent panel cut to iXP. Screen gesture Flick to change screens. No extra switching button is needed to change screens. Object gesture Select and then swipe and flick the object you want. Object List • Logging trend graph • View logging history • View history alarms Multi-touch Use multi-touch to protect your system from undesired errors. Dual monitor mode and extension mode Increase convenience by duplicating or extending screens. Dimensions Specification More Information ItemiXP2-0800A/DiXP2-1000A/DiXP2-1200A/DiXP2-1500A/D Display typeTFT color LCD Screen size8.4"10.4"12.1"15" Display resolution800 x 600 pixel1024 x 768 pixel Color indication24-bit color (16.7M colors) Indication degreeRight and left: 80 deg. Top: 80 deg. Bottom: 60 deg.Right: 75 deg. Top: 75 deg. Bottom: 75 deg.Right and left: 80 deg. Top: 80 deg. Bottom: 80 deg. BacklightLED method, automatic On / Off support Backlight lifetime50,000 hours Touch panelCapacitive touch Audio outputMagnetic Buzzer (85dB) Process1GHz, Dual-Core CPU MemoryFlash1GByte Operating RAM1GByte Backup RAM1MByte Backup dataDate / Time data, Logging / Alarm / Recipe data, Non-volatile devices BatteryCR2032(3.0V/210mAh, About 3years/25℃) Video Out1 x HDMI Ethernet1 x 10Base-T / 100Base-TX, 1 x 10Base-T / 100Base-TX / 1000Base-T USB host3 x USB 2.0 (Front x 1, Rear x 2) USB device1 x USB 2.0 (Send / Receive front, PC and project data etc.) RS-232C1 x RS-232C (DSUB 9 / Male type) RS-422/4851 x RS-422/485 (Terminal Block) Multi-languageCan display 12 languages simultaneously AnimationGIF format support RecipeSupport Data loggingSupport Script LauncherSupport Standard CertificationCE, KC, UL, IECEx, ATEX, KCs Protection standardIP66, Conform to the UL type 4x, NEMA 4x standard Explosion proofEx nA IIC T5 Gc, Ex tc IIIC T100℃ Dc IP64 Dimension (mm)240 × 180 × 60271 x 212 x 60313 × 239 × 60395 × 294 × 66 Panel cut (mm)228.5 x 158.5259.0 x 201.0301.5 x 227.5383.5 x 282.5 PoweriXP2-xxxxA : AC100 / 240V, iXP2-xxxxD : DC24V Power consumption (W)25253030 Weight(Kg)1.872.353.04.6 Specific conditions of use1. The equipment presents a potential electrostatic hazard. Clean only with a damp cloth. 2. The device shall be installed in an enclosure that maintains an ingress protection rating of at least IP54 and meets the enclosure requirements of IEC 60079-0 and IEC 60079-15. 3. Must be installed in accordance with EN 60079-14. 4. Do not connect or separate plugs and sockets while an explosive atmosphere is present. 5. Keep out of direct sunlight * DC types scheduled for release in '18.03
| 25 | 30 |
|---|---|
| Top | 80 deg. | 75 deg. |
| 2.35 | 3.0 |
| Item | iXP2-0800A/D |
| 10.4" | 12.1" |
| Power | iXP2-xxxxA : AC100 / 240V, iXP2-xxxxD : DC24V |
| Bottom | 60 deg.Right: 75 deg. | 75 deg.Right and left: 80 deg. |
| Memory | Flash | 1GByte |
| Recipe | Support |
| Battery | CR2032(3.0V/210mAh, About 3years/25℃) |
| Process | 1GHz, Dual-Core CPU |
| RS-232C | 1 x RS-232C (DSUB 9 / Male type) |
| Ethernet | 1 x 10Base-T / 100Base-TX, 1 x 10Base-T / 100Base-TX / 1000Base-T |
| USB host | 3 x USB 2.0 (Front x 1, Rear x 2) |
| Animation | GIF format support |
| Backlight | LED method, automatic On / Off support |
| Video Out | 1 x HDMI |
| Backup RAM | 1MByte |
| RS-422/485 | 1 x RS-422/485 (Terminal Block) |
| USB device | 1 x USB 2.0 (Send / Receive front, PC and project data etc.) |
| Weight(Kg) | 1.87 |
| Backup data | Date / Time data, Logging / Alarm / Recipe data, Non-volatile devices |
| Screen size | 8.4" |
| Touch panel | Capacitive touch |
| Audio output | Magnetic Buzzer (85dB) |
| Data logging | Support |
| Display type | TFT color LCD |
| iXP2-1000A/D | iXP2-1200A/D |
| 259.0 x 201.0 | 301.5 x 227.5 |
| Operating RAM | 1GByte |

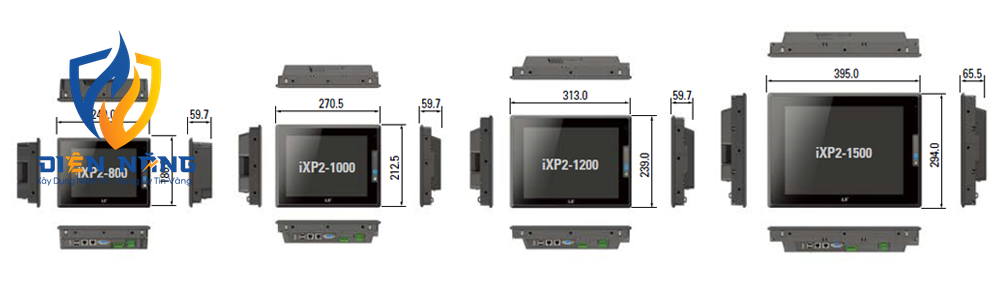

| 271 x 212 x 60 | 313 × 239 × 60 |
| Dimension (mm) | 240 × 180 × 60 |
| Multi-language | Can display 12 languages simultaneously |
| Panel cut (mm) | 228.5 x 158.5 |
| Explosion proof | Ex nA IIC T5 Gc, Ex tc IIIC T100℃ Dc IP64 |
| PoweriXP2-xxxxA | AC100 / 240V, iXP2-xxxxD : DC24V |
| Script Launcher | Support |
| Thương hiệu | LS Electric |
| Color indication | 24-bit color (16.7M colors) |
| Indication degree | Right and left: 80 deg. Top: 80 deg. Bottom: 60 deg. |
| Backlight lifetime | 50,000 hours |
| Display resolution | 800 x 600 pixel | 1024 x 768 pixel |
| Protection standard | IP66, Conform to the UL type 4x, NEMA 4x standard |
| Power consumption (W) | 25 |
| Standard Certification | CE, KC, UL, IECEx, ATEX, KCs |
| Specific conditions of use | 1. The equipment presents a potential electrostatic hazard. Clean only with a damp cloth. 2. The device shall be installed in an enclosure that maintains an ingress protection rating of at least IP54 and meets the enclosure requirements of IEC 60079-0 and IEC 60079-15. 3. Must be installed in accordance with EN 60079-14. 4. Do not connect or separate plugs and sockets while an explosive atmosphere is present. 5. Keep out of direct sunlight |
| Indication degreeRight and left | 80 deg. |
| Right: 75 deg. Top: 75 deg. Bottom: 75 deg. | Right and left: 80 deg. Top: 80 deg. Bottom: 80 deg. |
iXP2 Series High functioning, user-friendly, and robust choice for your system, iXP2 Contact us Features High functioning, user-friendly, and robust choice for your system, iXP2 Responsive touch screen Use touch screen either with bare hands or with gloves. Dual-Core CPU offers high-speed communication and processing Better performance than ever with enhanced serial communication, CPU processing, memory access, and vector/raster graphic processing Multiple interface methods to cope with the Internet of Things Ethernet 2ch., HDMI/Audio output, USB host/device, multimedia (video) Multi-touch and gesture-control screens Multi-touch maximizes operating stability and safety. Use gesture-control to view logging trend graphs and to change screens. Robust IP66 aluminum frame Reinforced protection against water and dust. Conforms to NEMA 4X standard. One-to-one interchangeability with existing iXP series Offers equivalent panel cut to iXP. Screen gesture Flick to change screens. No extra switching button is needed to change screens. Object gesture Select and then swipe and flick the object you want. Object List • Logging trend graph • View logging history • View history alarms Multi-touch Use multi-touch to protect your system from undesired errors. Dual monitor mode and extension mode Increase convenience by duplicating or extending screens. Dimensions Specification More Information ItemiXP2-0800A/DiXP2-1000A/DiXP2-1200A/DiXP2-1500A/D Display typeTFT color LCD Screen size8.4"10.4"12.1"15" Display resolution800 x 600 pixel1024 x 768 pixel Color indication24-bit color (16.7M colors) Indication degreeRight and left: 80 deg. Top: 80 deg. Bottom: 60 deg.Right: 75 deg. Top: 75 deg. Bottom: 75 deg.Right and left: 80 deg. Top: 80 deg. Bottom: 80 deg. BacklightLED method, automatic On / Off support Backlight lifetime50,000 hours Touch panelCapacitive touch Audio outputMagnetic Buzzer (85dB) Process1GHz, Dual-Core CPU MemoryFlash1GByte Operating RAM1GByte Backup RAM1MByte Backup dataDate / Time data, Logging / Alarm / Recipe data, Non-volatile devices BatteryCR2032(3.0V/210mAh, About 3years/25℃) Video Out1 x HDMI Ethernet1 x 10Base-T / 100Base-TX, 1 x 10Base-T / 100Base-TX / 1000Base-T USB host3 x USB 2.0 (Front x 1, Rear x 2) USB device1 x USB 2.0 (Send / Receive front, PC and project data etc.) RS-232C1 x RS-232C (DSUB 9 / Male type) RS-422/4851 x RS-422/485 (Terminal Block) Multi-languageCan display 12 languages simultaneously AnimationGIF format support RecipeSupport Data loggingSupport Script LauncherSupport Standard CertificationCE, KC, UL, IECEx, ATEX, KCs Protection standardIP66, Conform to the UL type 4x, NEMA 4x standard Explosion proofEx nA IIC T5 Gc, Ex tc IIIC T100℃ Dc IP64 Dimension (mm)240 × 180 × 60271 x 212 x 60313 × 239 × 60395 × 294 × 66 Panel cut (mm)228.5 x 158.5259.0 x 201.0301.5 x 227.5383.5 x 282.5 PoweriXP2-xxxxA : AC100 / 240V, iXP2-xxxxD : DC24V Power consumption (W)25253030 Weight(Kg)1.872.353.04.6 Specific conditions of use1. The equipment presents a potential electrostatic hazard. Clean only with a damp cloth. 2. The device shall be installed in an enclosure that maintains an ingress protection rating of at least IP54 and meets the enclosure requirements of IEC 60079-0 and IEC 60079-15. 3. Must be installed in accordance with EN 60079-14. 4. Do not connect or separate plugs and sockets while an explosive atmosphere is present. 5. Keep out of direct sunlight * DC types scheduled for release in '18.03
