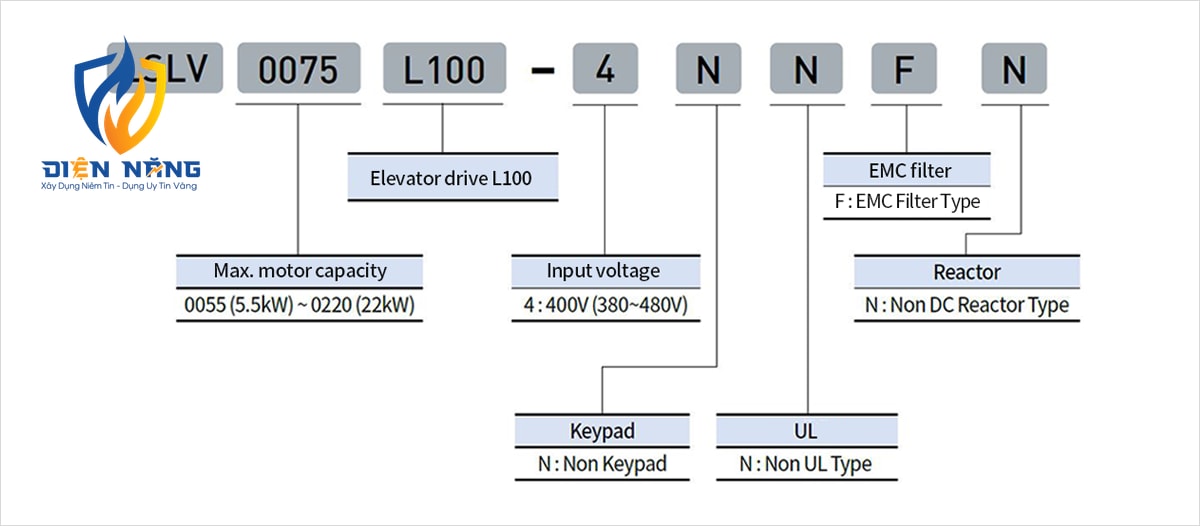

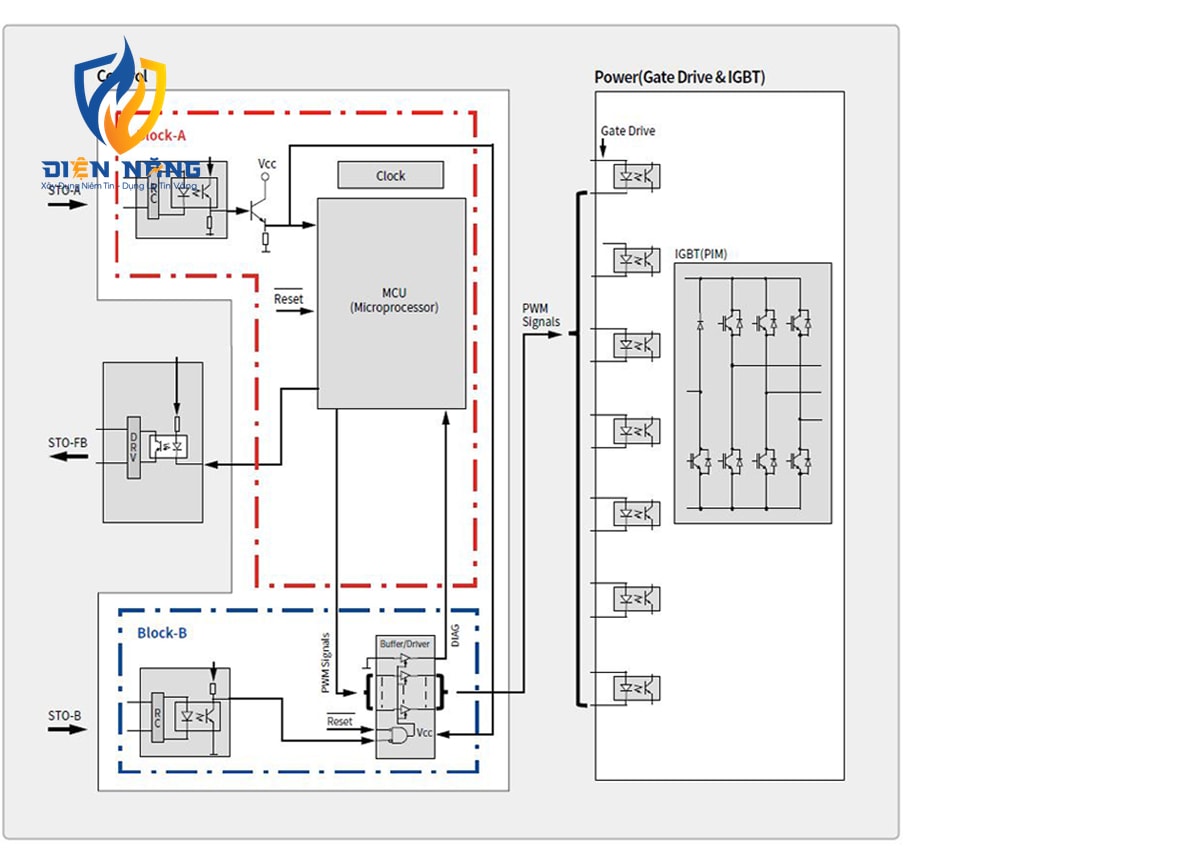

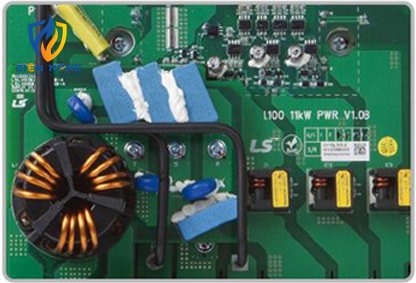

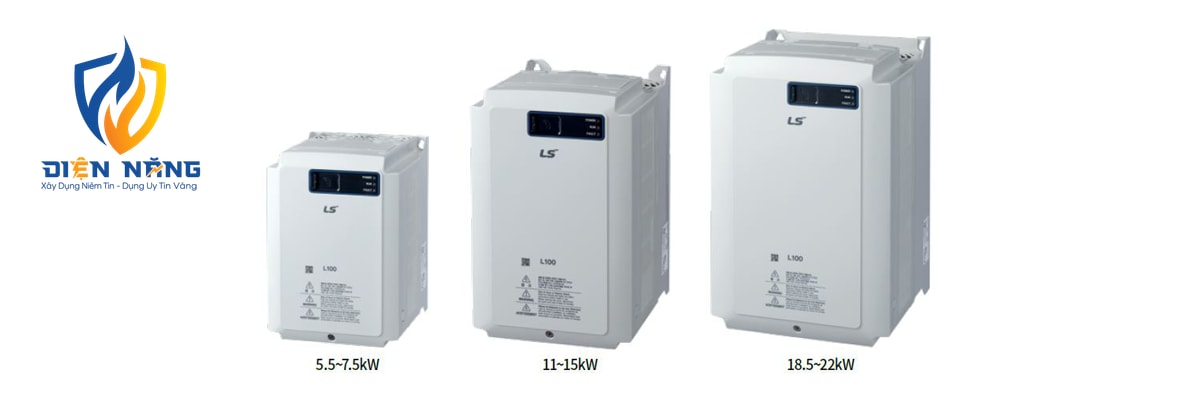

L100 L100 series offer best-in-class performance and size-optimized solutions for lifting applications. Optimized for lifting load operation, L100 series provide essential functions and options for elevator systems. Contact us Features Elevator drive 2. Optimization Optimized for lifting load operation such as elevator and lift systems, L100 series provide powerful and essential functions Premium high performance vector control Available for various load conditions (control of both IM and PM) Smooth and precise control by optimized control algorithm (voltage/speed/flux control) Fast installation by optimized autotuning (PM/IM standstill auto-tune, IM rotational auto-tune) and easy control gain tuning Essential functions for elevator systems • Creepless • Load Cell-less & anti-rollback • Battery operation function for emergency (power failure) • Auto light load search • Optimized multi step speed control for short floor operation pattern • Elevator I/O support • Anti-hunting regulator 3. Responsibility Built-in safety function and powerful anti-noise Built-in anti-noise EMC filter • 1st environment/category C2 (Class B) CE certificate System stability with built-in safety (SIL 2) 4. Convenience Various features to enhance user convenience in installation, commissioning, and maintenance Status LED for operation monitoring Easy keypad connection through front slide door Built-in dynamic brake circuit Removable terminal for easy maintenance DriveView9 support Built-in communication: CAN2.0B, RS-232C DC Reactor connector Easy cooling fan replacement Option 1. CompactSize reduction and performance enhancement by heat dissipation analysis and 3D design processBest-in-class performance and size-optimized solutions5.5/7.5kW dimension • Half sized compared to other company products. System Configuration Type Designation Specification Basic Specification 1) Model name for LSLV-L100. 2) Standard motor capacity is based on a standard 440V 4-pole motor. 3) Maximum output voltage does not go over the supplied power voltage. Dimension Specification More Information Incremental Encoder• Incremental A/B Pulse• Power: DC5/12/15V• Input: A+[PA], A-, B+[PB], B-• Output: RA, RB, RG (Encoder A, B phase return pulse)• Encoder: Line drive (5V), Open collector (12V, 15V)EnDat Encoder• HEIDENHAIN Encoder I/F (EnDat v2.2)• Power: DC5V• Input: SIN+, SIN-, COS+, COS-, DATA+, DATA-, CLK+, CLK-• Output: RA, RB, RG• Encoder: ECN413, ECN1313, ERN487, ERN1387 SIN/COS Encoder• HEIDENHAIN Encoder I/F• Power: DC5V• Input: SIN+, SIN-, COS+, COS-, SIN2+, SIN2-, COS2+, COS2-• Output: RA, RB, RG• Encoder: ECN413, ECN1313, ERN487, ERN1387Elevator I/O (ELIO)• Dedicated to elevator I/O terminal• Digital input: 9 points for elevator car control• Digital output: 10 points for elevator car position and operation control• Fault information output: 4 points

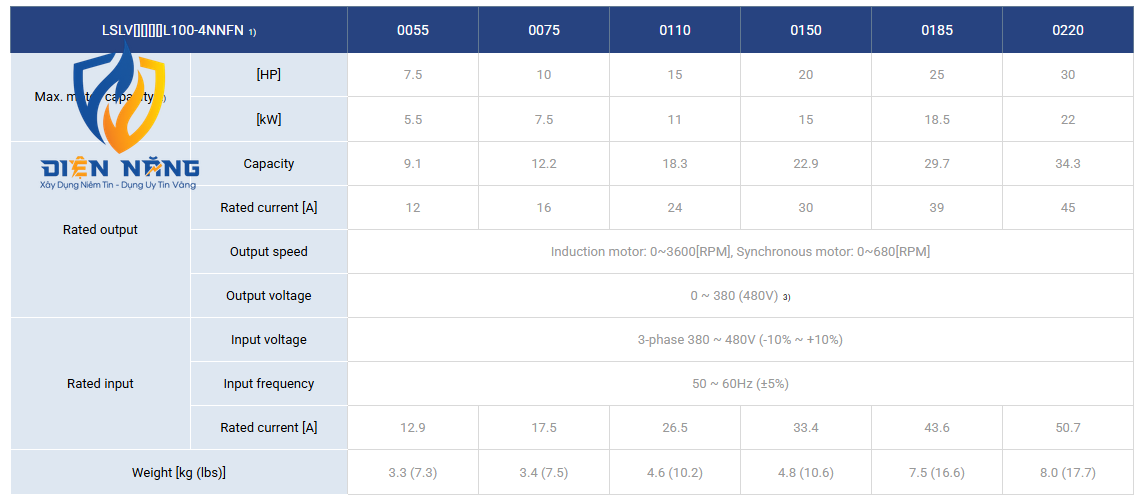

| Thương hiệu | LS Electric |
|---|---|
| Built-in communication | CAN2.0B, RS-232C |

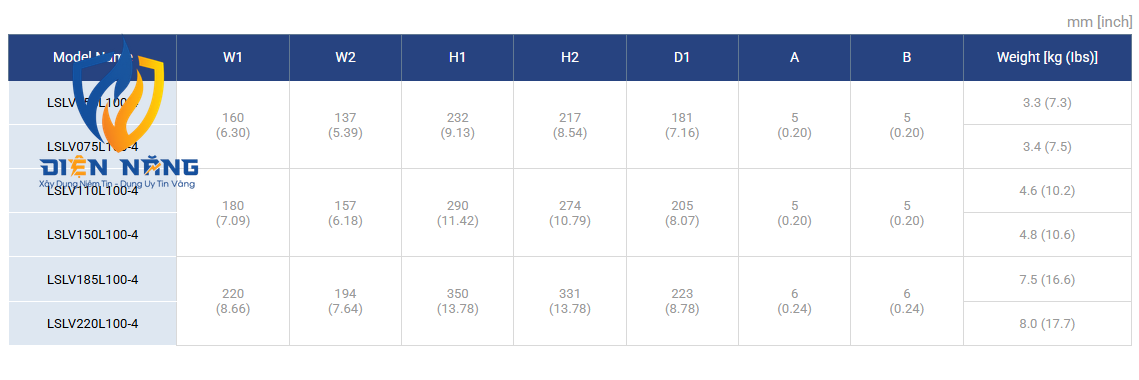

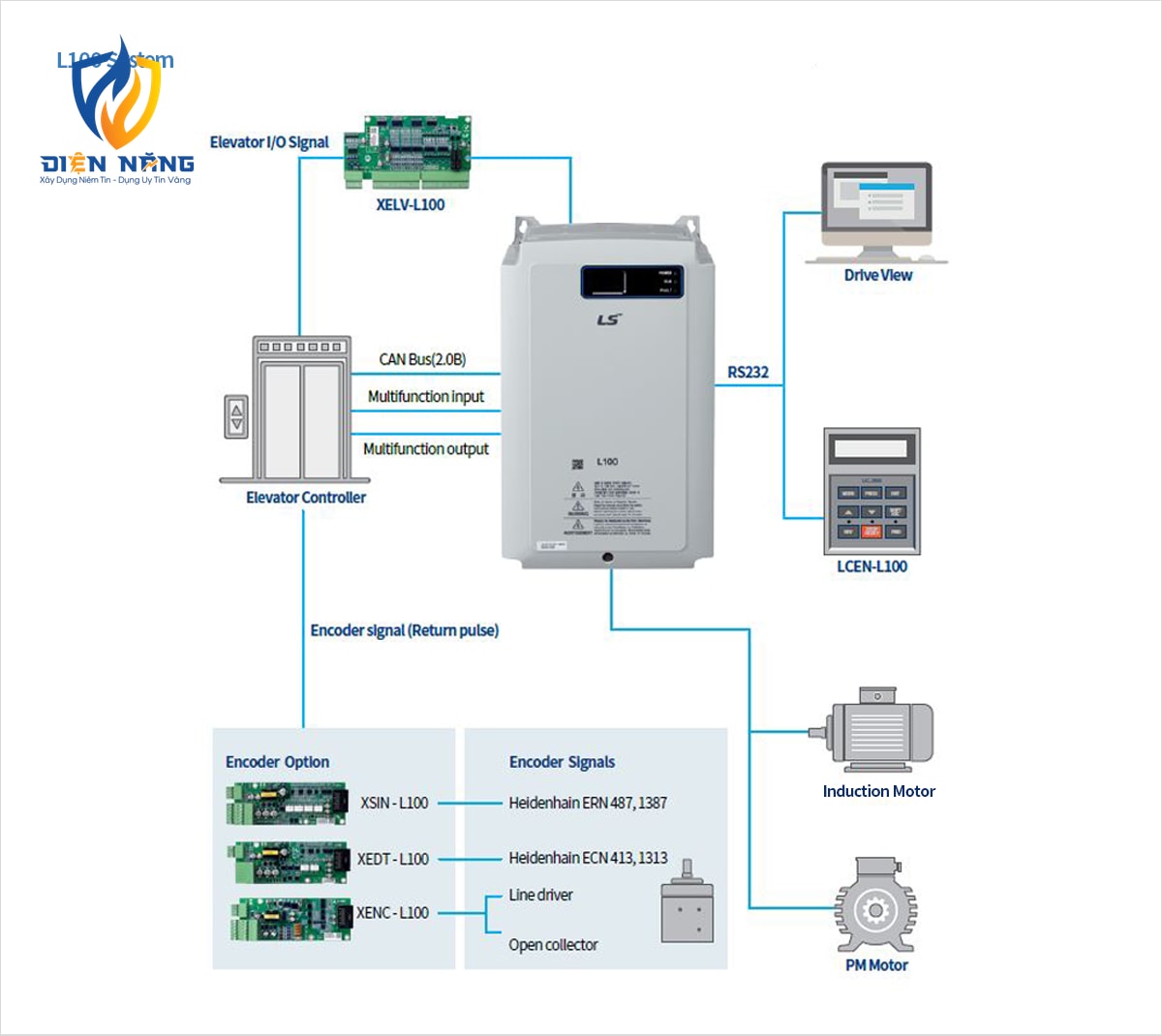

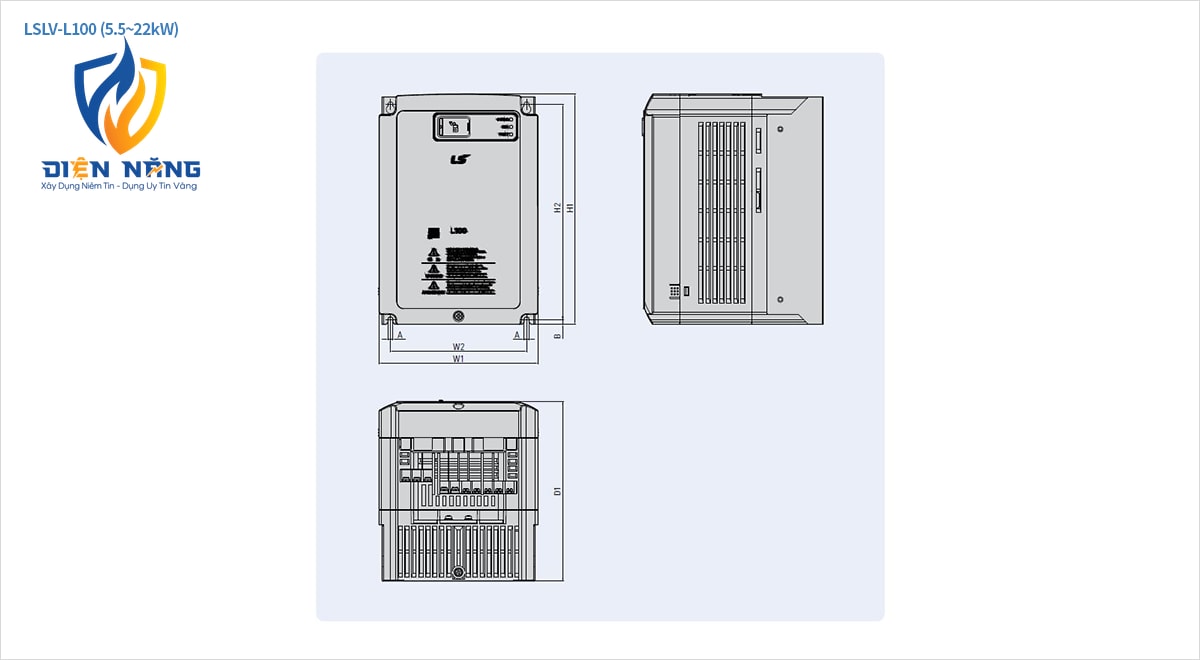

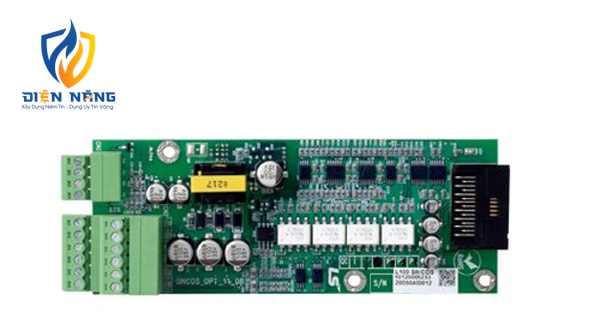

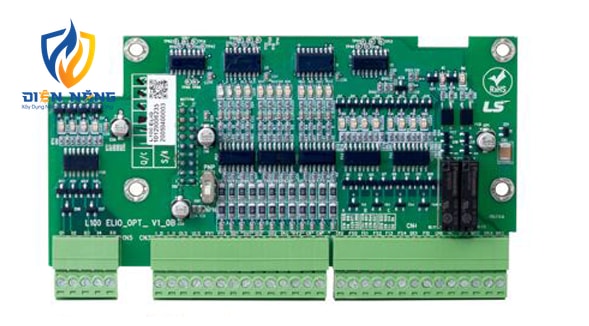

| SIN/COS Encoder• HEIDENHAIN Encoder I/F• Power | DC5V• Input: SIN+, SIN-, COS+, COS-, SIN2+, SIN2-, COS2+, COS2-• Output: RA, RB, RG• Encoder: ECN413, ECN1313, ERN487, ERN1387Elevator I/O (ELIO)• Dedicated to elevator I/O terminal• Digital input: 9 points for elevator car control• Digital output: 10 points for elevator car position and operation control• Fault information output: 4 points |

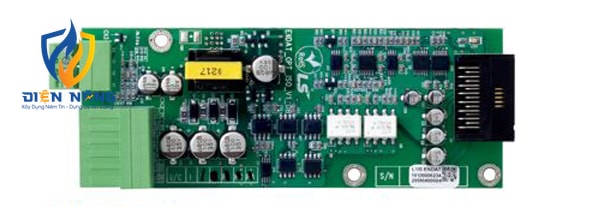

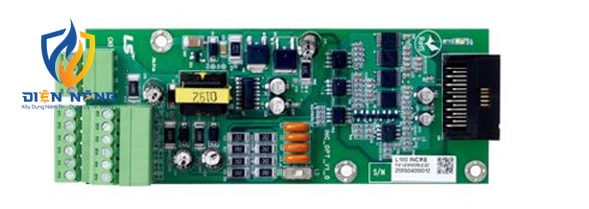

| Incremental Encoder• Incremental A/B Pulse• Power | DC5/12/15V• Input: A+[PA], A-, B+[PB], B-• Output: RA, RB, RG (Encoder A, B phase return pulse)• Encoder: Line drive (5V), Open collector (12V, 15V)EnDat Encoder• HEIDENHAIN Encoder I/F (EnDat v2.2)• Power: DC5V• Input: SIN+, SIN-, COS+, COS-, DATA+, DATA-, CLK+, CLK-• Output: RA, RB, RG• Encoder: ECN413, ECN1313, ERN487, ERN1387 |
| Incremental Encoder• Incremental A/B Pulse• Power: DC5/12/15V• Input: A+[PA], A-, B+[PB], | EnDat Encoder• HEIDENHAIN Encoder I/F (EnDat v2.2)• Power: DC5V• Input: SIN+, SIN-, COS+, COS-, DATA+, DATA-, CLK+, CLK-• Output: RA, RB, RG• Encoder: ECN413, ECN1313, ERN487, ERN1387 |
| SIN/COS Encoder• HEIDENHAIN Encoder I/F• Power: DC5V• Input: SIN+, SIN-, COS+, COS-, SIN2+ | Elevator I/O (ELIO)• Dedicated to elevator I/O terminal• Digital input: 9 points for elevator car control• Digital output: 10 points for elevator car position and operation control• Fault information output: 4 points |
