iV5L Lift Drive Contact us Features Integrated software for both IM/PM control • Selectable IM/PM control with embedded keypad• Induction Motor : V/F, Slip Compensation, Sensored Vector • Permanent Magnet Motor : Sensored Vector Built-in Safe Torque Off (STO) • Disconnects the power base on input signal through redundant safety terminal in case of emergency• Safety function satisfies EN61508, SIL2(EN13849-1) Auto Torque Boost • Open loop control performance secured Anti-rollback • Prevents roll back through starting torque compensation by encoder position control when Lift brake opens ALLS(Automatic Light Load Search) • Function to allow the lift to run safely in a direction with less load in battery operation (emergency cases) Anti-Hunting Regulation • Contains current hunting (Current distortion or oscillation) caused by mechanical resonance under V/F control Battery Operation • Emergency motor operation using externally installed battery power when main power is not supplied due to power failure(Speed and battery input voltage could be set in battery operation) Trip/Warning function • Able to monitor fault by warning and trip setting – Trip: Fan, fault, battery signal loss during the battery operation, A3 fault, LV2 fault, Safety A/B fault, SINCOS input connection check, and data clock settings for Endat option board• Warning : Fan alarm • Endat encoder fault detection Encoder options • Endat, SIN/COS Encoder Feedback options available * Incremental encoder : Default Elevator I/O Embedded with lift sequence program • Embedded with lift sequence program • Car position output • E/L position and sequence control • MC/Brake operation signal output • E/L exclusive connector SIN/COS+Endat Option Card for SIN/COS and EnDat encoder • Selectable Endat & Sin/COS Option • Max. 3,600rpm speed • Enhanced Comfortable feeling in Car• Compatibility with Heidenhain Encorder • ECN413, ECN1313, ERN487, ERN1387 SIN/COS Option Card for SIN/COS encoder • Sin/COS Option • Max. 130rpm(at 2048ppr) to 550rpm(at 512ppr) speed • Enhanced Comfortable feeling in Car• Compatibility with Heidenhain Encorder • ECN413, ECN1313, ERN487, ERN1387 Keypad functions Type Designation Specification 3-Phase 400V(5.5~22kW) · The standard motor capacity is based on a standard 4-pole motor. · 400V Drives are designed for a 440V supply voltage. · The maximum output voltage cannot exceed the input voltge. More Information LSLV ㅁㅁㅁ iV5L-4CNNN055075110150185220 Motor RatingHP7.51015202530 kW5.47.5111518.522 Output RatingCapacity [kVA]9.112.218.322.929.034.3 Rated Current [A]121624303945 Speed0~3600 rpm Voltage [V]0~380 V (480V) Input RatingVoltage [V]3-phase 380~480VAC (-10% ~ +10%) Frequency [Hz]50~60Hz (±5%) Weight (kg(lbs))7.7 (16.9)7.7 (16.9)13.7 (30.2)13.7 (30.2)20.3 (44.7)20.3 (44.7)

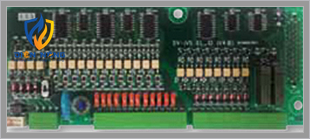

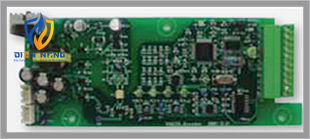

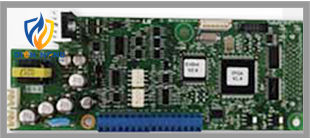

| 15 | 20 | 18.5 |
|---|---|
| 16 | 24 |
| 25 | 30 |
| 30 | 39 |
| 150 | 185 |
| kW | 5.4 |
| 075 | 110 |
| 7.5 | 10 | 11 |
| 9.1 | 12.2 |
| 18.3 | 22.9 |
| 29.0 | 34.3 |
| Speed | 0~3600 rpm |
| 7.7(16.9) | 13.7(30.2) |
| 13.7(30.2) | 20.3(44.7) |
| Voltage [V] | 0~380 V (480V) |
| Input Rating | Voltage [V] | 3-phase 380~480VAC (-10% ~ +10%) |
| Motor Rating | HP |
| Output Rating | Capacity [kVA] |
| Frequency [Hz] | 50~60Hz (±5%) |
| Thương hiệu | LS Electric |
| Weight (kg(lbs)) | 7.7(16.9) |
| Rated Current [A] | 12 |
| * Incremental encoder | Default |
| Permanent Magnet Motor | Sensored Vector |

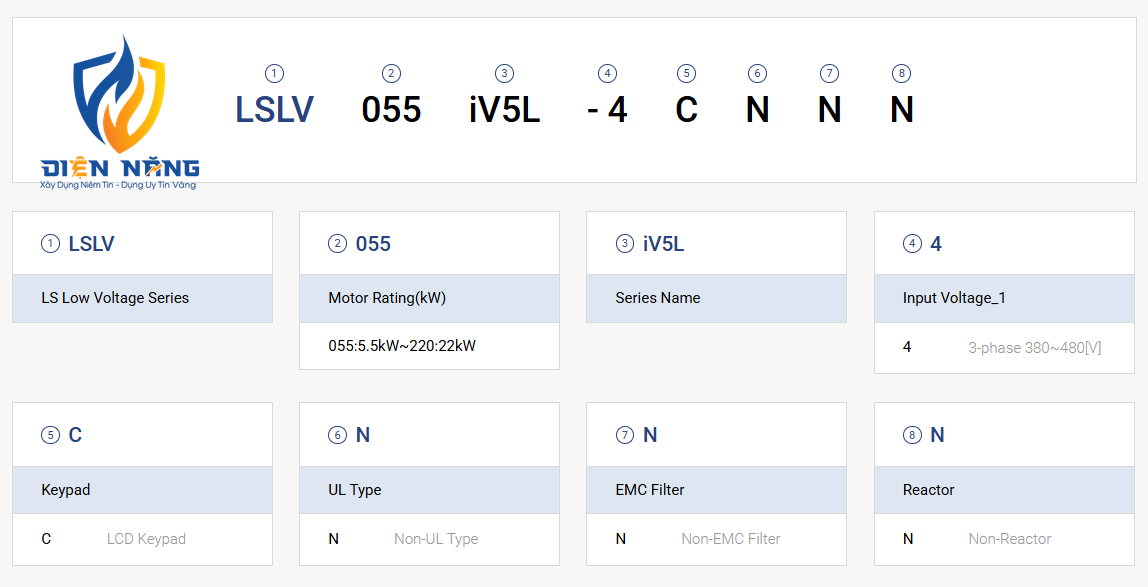

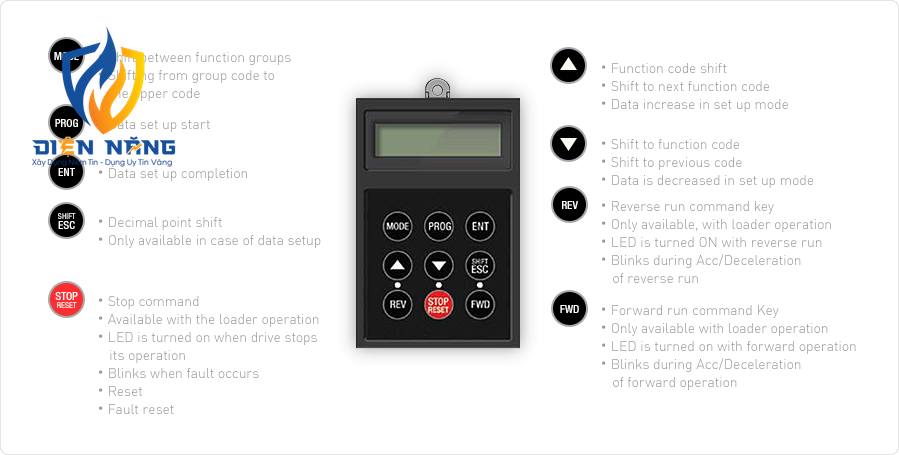

| LSLV ㅁㅁㅁ iV5L-4CNNN | 055 |
| Able to monitor fault by warning and trip setting – Trip | Fan, fault, battery signal loss during the battery operation, A3 fault, LV2 fault, Safety A/B fault, SINCOS input connection check, and data clock settings for Endat option board• Warning : Fan alarm |
| Selectable IM/PM control with embedded keypad• Induction Motor | V/F, Slip Compensation, Sensored Vector |
