iC5 (EOL)

Tổng quan

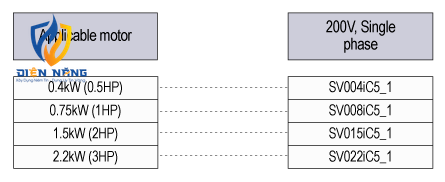

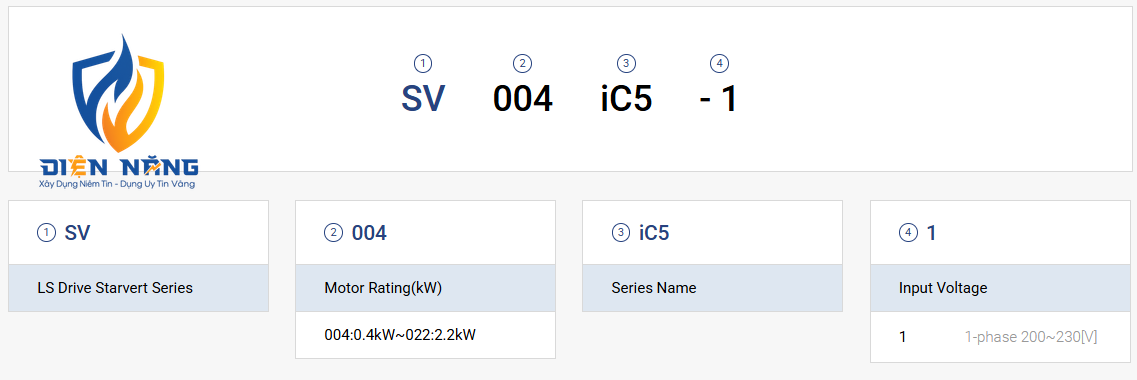

iC5 (EOL) Micro Drive​ Contact us Features • Sensorless vector control The iC5 adopted the sensorless vector control algorithm, which improves not only the torque control characteristics, but the speed controllability in uncertain conditions caused by the load variation. • Auto Tuning The auto tuning algorithm in the iC5 sets the motor factors automatically that brings the traditional commissioning difficulties mainly in low speed by the load variation and the low torque generation to a settlement. • Highly efficient DSP chip The iC5 adopts a highly efficient DSP (Digital Signal Processing) chip to improve processing speed, flexibility, and stability. • PNP and NPN Dual Control Signal The iC5 provides PNP and NPN signals for outside controllers. It works with 24Vdc regardless of the type of PLC or control signals. • Communication interface, Modbus-RTU The iC5 provides the most popular communication interface, ModBus-RTU for remote control by the PLC or other devices. • PID Control PID process control is used in iC5 to quickly make speed corrections with a minimal amount of overshoot and oscillation for the control of flow, temperature, and pressure. Type Designation Specification 200V Class More Information Specification - 200V Class Type SV004 iC5-1 SV008 iC5-1 SV015 iC5-1 SV022 iC5-1 200V Class Motor Rating [HP] 0.5 1 2 3 [kW] 0.4 0.75 1.5 2.2 Output ratings Capacity[kVA] 0.95 0.95 3.0 4.5 FLA[A] 2.5 0.95 3.0 4.5 Output frequency 0 ~ 400Hz Output voltage 3 Phasde200~230V Input ratings Voltage Single phase 200 ~ 230 V (±10%) FLA[A] 5.5 9.2 16 21.6 Frequency 50 ~ 60 Hz (± 5%) Control Control method V/F control, Sersorless vector control Frequency setting resolution Digital reference: 0.01Hz Analog referency: 0.06Hz/60Hz Frequency setting resolution Digital reference: 0.01Hz Analog referency: 0.06Hz/60Hz V/F ratio Linear, Square pattern, User V/F Overload capacity 1 min at 150%, 30 sec at 200% (with inverse characteristic) Torque boost Manual torque boost (0~15 adjustable), auto torque boost Input signal Operation method Keypad / Terminal / Communications Frequency setting Analog: 0~10V / 4~20mA, Digital: Keypad, Communication: RS485 (Option) Start signal Forward, Reverse Multi-step accel/decal time 0.1~6000 sec. Max. 8 types available by multi-function terminal, Selectable accel/decel patterns : Linear, U and S Emergency stop Interrupting the output of the drive. Jog Jog operation Fault reset Reset the fault when protective function is active Output signal Operation status & fault output Frequency detection, Overload alarm, Stalling, Overvoltage, Undervoltage, Drive overheating, Run, Stop, Constant speed, Speed searching, Fault output ( Relay and Open collector output ) Indicator Choose one from output frequency, current, voltage and DC voltage.(Output voltage : 0~10V ) Operation function DC braking, Frequency limit, Frequency jump, Second function, Slip compensation, Reversing prevention, Auto restart, PID control Protection functions Drive trip Overvoltage, Undervoltage, Overcurrent, Drive overtemperature, Motor overtemperature, I/O phase loss, I/O mis-wiring, Overload , External device fault 1.2, Loss of speed command, Hardware fault, Communication error, CPU error Drive alarm Stall prevention, Overload alarm Momentary power loss Less than 15 msec: keeping operation More than 15 msec: auto restart available Display Keypad Operation information Output frequency, current and voltage, Set frequency value, Operation speed, DC voltage Trip information Display the trip cause when the protection function activates. Recent 5 faults records stored Environment Ambient temperature -10 ~ 40℃ Storage temperature -20 ~ 65℃ Humidity 90 %RH max (No condensing) Atmosphere No corrosive gas, flammable gas, oil mist or dust Pressure 70 ~ 106k Pa
