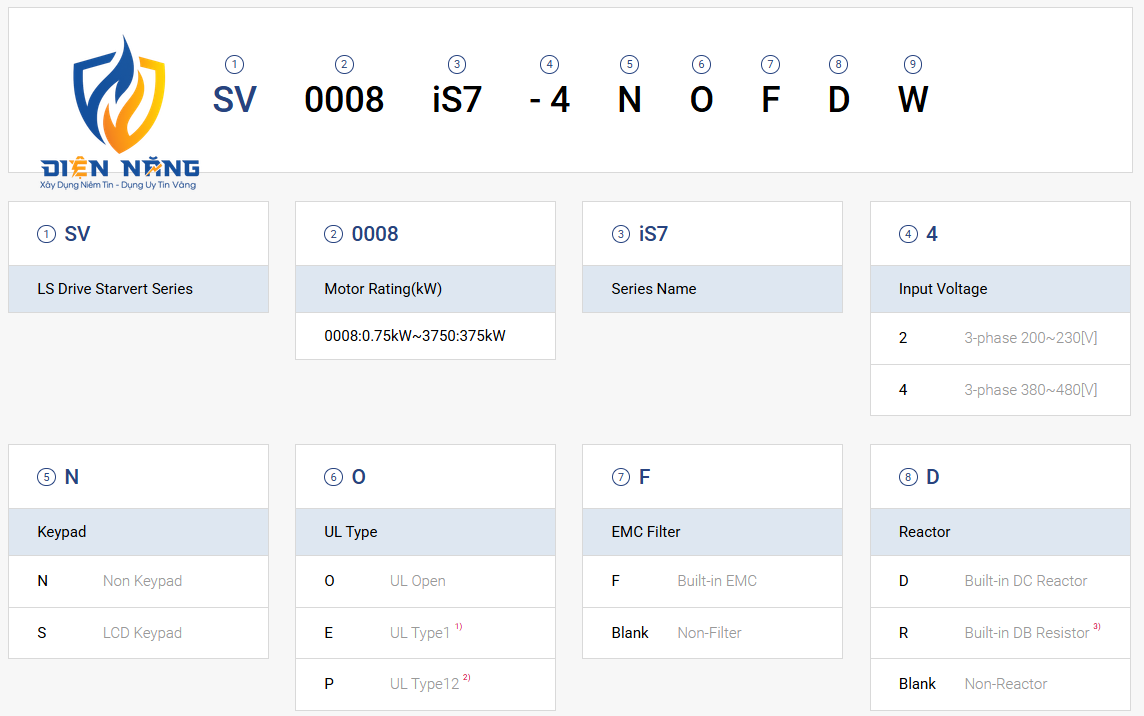

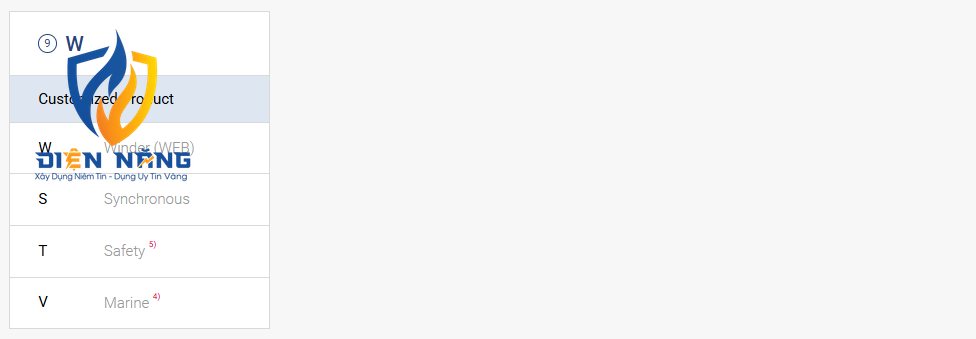

iS7 Premium Drive Contact us Features Powerful Performance • Control mode: V/F, V/F PG, Sensorless Vector, Vector • Speed Control Range 1:100(Sensorless Vector), 1:1000(Vector) • LV Trip Delay Function, Cooling Fan Control • Droop Control, KEB Function, Flying Start, Flux Brake • PMSM Control Flexibility • Built-in RS485 & Modbus Communication • Profibus-DP, DeviceNet, LonWorks, Rnet, Modbus TCP Option • Max. Input 11 Points, Output 6 Points when use expended I/O Card • PLC Card option: Master-K platform Normal Input 14 Points, Normal Output 7 points • Encoder Card option • Optional IP54 Enclosure (~ 22kW) Convenience & Environment • Built-in EMC filter to protect from excessive electronic distortion • DC reactor built-in for harmonic reduction and power factor improvement • Widened graphic LCD keypad • Multi-language support (5 languages) • User & macro group support For 0.75~75KW enclosed type-1 can be satisfied if conduit option is installed. 2)Enclosed UL type 1 and 2 is available from 0.75 to 22kW. 3)Built-in DB resistor option is available only for the web version product from 0.75kW to 3.7kW. DB resistor of IS7 porduct is the WEB product option. Applicable capacity is from 0.75 to 375 kW of IS7 products. 4)For more information about marine certification, refer to page 25. 5)For 0.75~160kW, the safety option cannot be installed in the field. A type “T” safety iS7 must be specified and ordered from the factory. For 185~375kW, a safety option can be purchased separately in the field installed on the standard iS7. Specification 3-phase 200V Class (0.75~22kW) 3-phase 200V Class (30~375kW) 3-phase 200V Class (0.75~22kW)Type: SVㅁㅁㅁㅁiS7-2ㅁ0008001500220037005500750110015001850220 Motor Applied 1)VT[HP]2357.5101520253040 [kW]1.52.23.75.57.5111518.52230 CT[HP]12357.51015202530 [kW]0.751.52.23.75.57.5111518.522 Rated OutputRated Capacity [kVA] 2)1.93.04.56.19.112.217.522.928.233.5 Rated Current [A] 3)CT581216243246607488 VT81216243246607488124 Output Frequency [Hz]0~400 [Hz] 4) Output Voltage [V]3-phase 200 ~ 230V 5) (Sensorless-1 : 0~300Hz, Sensorless-2, Vector : 0.1~120Hz) Rated InputAvailable Voltage [V]3-phase 200 ~ 230 VAC (-15% ~ +10%) Frepuency [Hz]50 ~ 60 [Hz] (±5%) Rated Current [A]CT4.36.911.214.922.128.644.355.970.885.3 VT6.810.614.921.328.641.254.769.782.9116.1 3-phsae 400V Class (0.75~22kW) 3-phase 200V Class (30~75kW)Type: SVㅁㅁㅁㅁ iS7-2ㅁ03000370045005500750----- Motor Applied 1)VT[HP]506075100125----- [kW]3745557590----- CT[HP]40506075100----- [kW]3037455575----- Rated OutputRated Capacity [kVA] 2)46576984116----- Rated Current [A] 3)CT116146180220288----- VT146180220288345----- Output Frequency0 ~ 400 [Hz] (Sensorless-1: 0 ~ 300Hz, Sensorless-2, Vector: 0 ~ 120Hz) 4) Output Voltage [V]3-phase 200 ~ 230V 5) Rated InputAvailable Voltage [V]3-phase 200 ~ 230VAC (-15% ~ +10%) Frepuency [Hz]50 ~ 60 [Hz] (±5%) Rated Current [A]CT121154/td>191233305----- VT152190231302362----- 3-phase 400V Class (30~375kW) 3-phase 200V Class (30~75kW)Type: SVㅁㅁㅁㅁ iS7-4ㅁ0008001500220037005500750110015001850220 Motor Applied 1)VT[HP]2357.5101520253040 [kW]1.52.23.75.57.5111518.52230 CT[HP]12357.51015202530 [kW]0.751.52.23.75.57.5111518.522 Rated OutputRated Capacity [kVA] 2)1.93.04.56.19.112.217.522.929.734.3 Rated Current [A] 3)CT2.5468121624303945 VT46812162430394561 Output Frequency0~400 [Hz] 4) Output Voltage [V]3-phase 380 ~ 480V 5) (Sensorless-1 : 0~300Hz, Sensorless-2, Vector : 0.1~120Hz) Rated InputAvailable Voltage [V]3-phase 380 ~ 480 VAC (-15% ~ +10%) Frepuency [Hz]50 ~ 60 [Hz] (±5%) Rated Current [A]CT2.23.65.57.511.014.422.026.635.641.6 VT3.75.77.711.114.721.926.435.541.155.7 1) Applied ​motor ​indicates the maximum capacity applied for use of a standard 4-pole standard motor. 2) Rated Capacity: The input capacity of a 200V class is based on 220V and a 400V class is based on 440V. The current rating is based on the CT current. 3) The output of the rated current is limited according to the setting of the carrier frequency (CON-04). 4) The frequency can be set up to 300Hz by selecting 3, 4 Sensorless-1, or Sensorless-2 as the control mode (DRV-09 Control Mode). 5) The maximum output voltage does not go over the supplied power voltage. The preferred output voltage can be selected below the supplied power voltage. * Non-DCR products are provided warranty service only when used in the CT (Heavy duty) load rating. More Information 3-phase 200V Class (30~75kW)Type: SVㅁㅁㅁㅁ iS7-2ㅁ03000370045005500750090011001320160018502200285031503750 Motor Applied 1)VT[HP]506075100125150200250300350400500600700 [kW]3745557590110132160185220280315375450 CT[HP]40506075100125150200250300350400500600 [kW]303745557590110132160185220280315375 Rated OutputRated Capacity [kVA] 2)4657698411613917020248286329416467557 Rated Current [A] 3)CT617591110152183223264325370432547613731 VT7591110152183223264325370432547613731877 Output Frequency0 ~ 400 [Hz] (Sensorless-1: 0 ~ 300Hz, Sensorless-2, Vector: 0 ~ 120Hz) 4) Output Voltage [V]3-phase 380 ~ 480V 5) Rated InputAvailable Voltage [V]3-phase 380 ~ 480 VAC (-15% ~ +10%) Frepuency [Hz]50 ~ 60 [Hz] (±5%) Rated Current [A]CT55.567.982.4102.6143.4174.7213.5255.6316.3404466605674798 VT67.581.7101.8143.6173.4212.9254.2315.3359.3463590673796948
