H100

Tổng quan

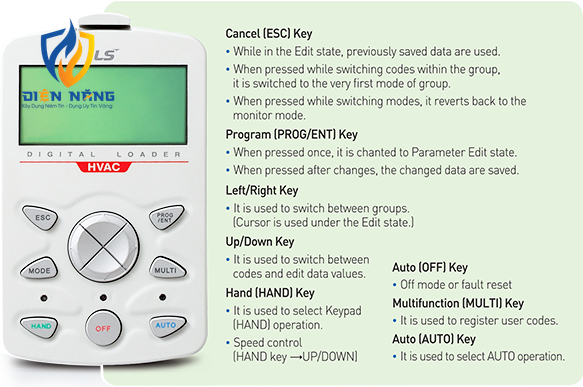

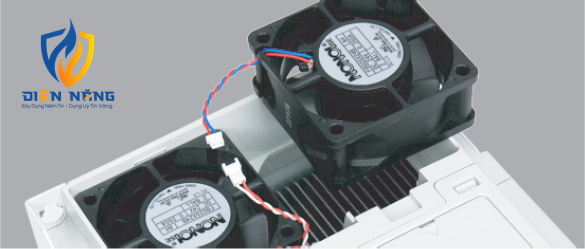

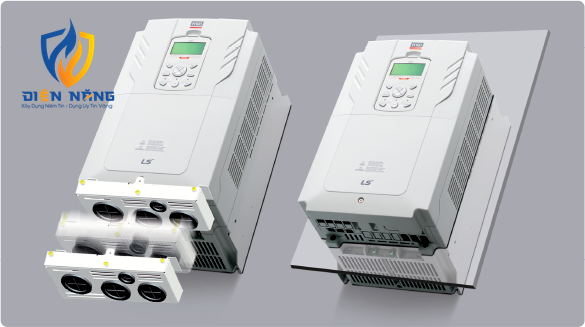

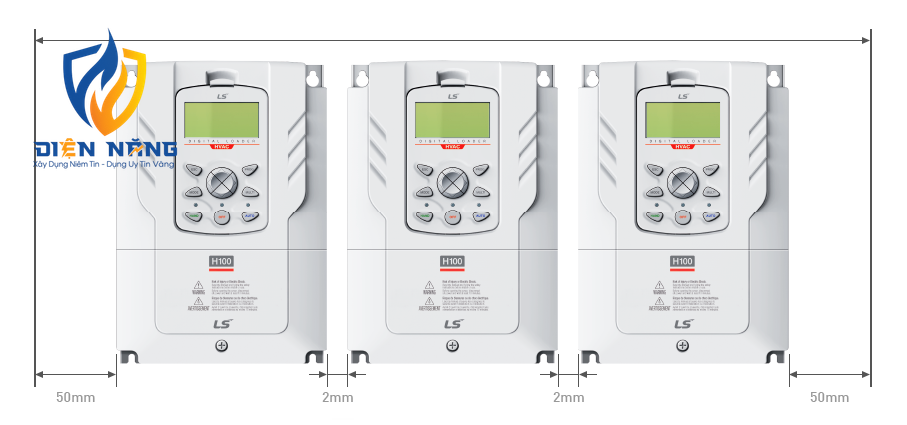

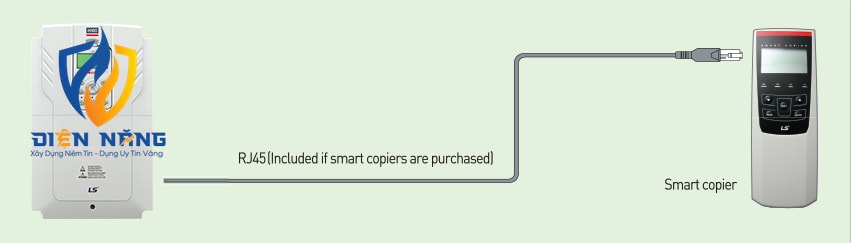

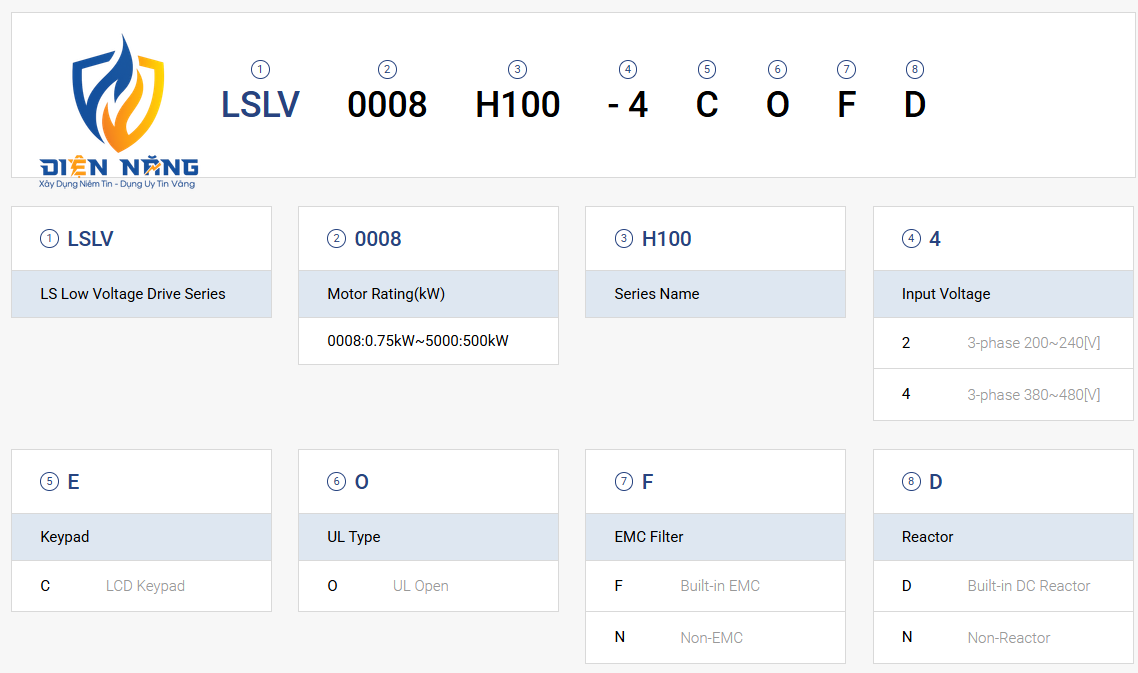

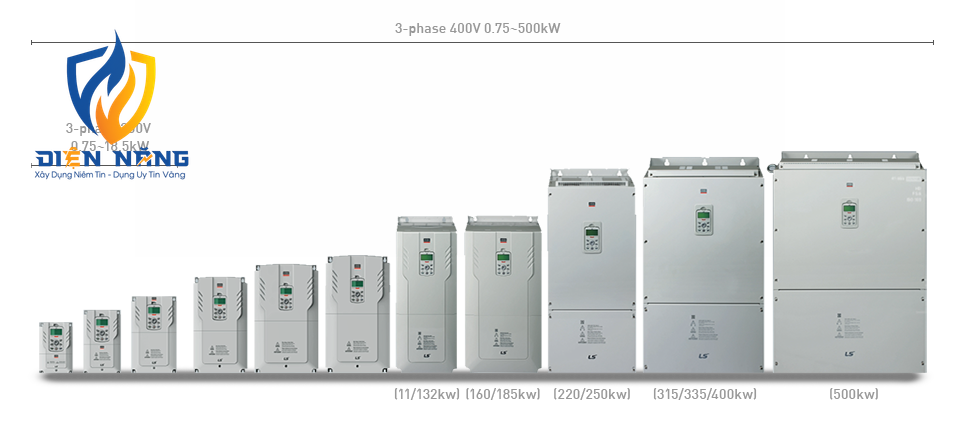

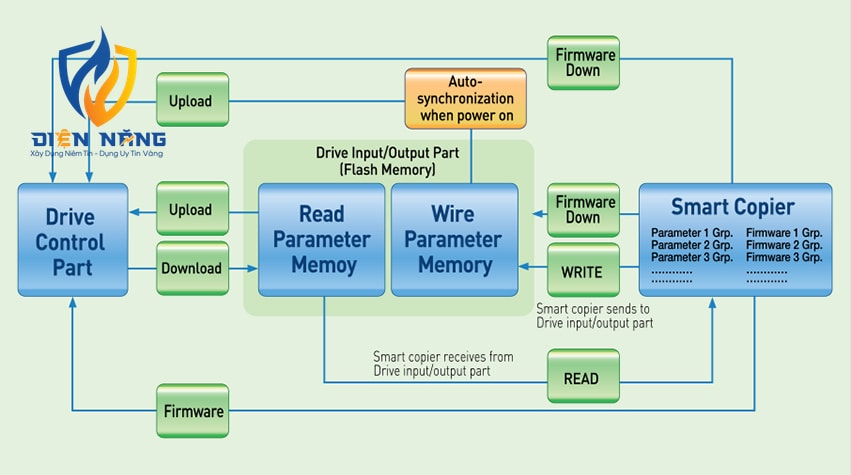

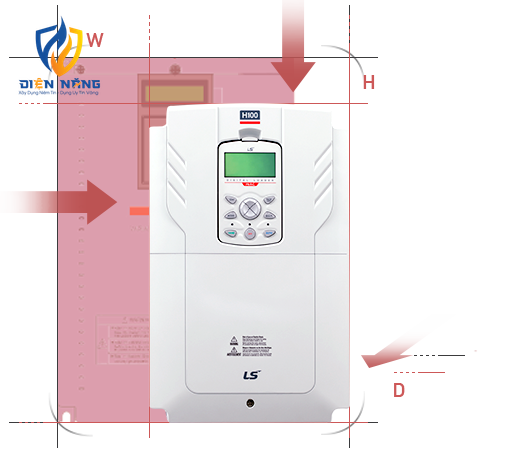

H100 Fan and Pump Drive Contact us Features 1. Maximized User Convenience Communication Module • RS-485 Capability is built-in • Modbus-RTU, Metasys N2 • BACnet MS/TP is embedded as standard • LonWorks option can be added Easy to Change Cooling Fan It is easy to change the cooling fan without opening the cover of the drive Keypad Exclusive for HVAC Used to issue commands, configure drive parameters, and for monitoring drive status • HAND mode (Local, Control, Mode) or AUTO Mode (Remote Control Mode) may be selected.• HAND Mode: Used when selecting frequency or run/stop commands. • AUTO Mode: Drive operated using the keypad. Multifunctional terminal block and communications. • Fault Status Monitoring Specification Level Option (Conduit Kit) Acquired UL open type & enclosed type 1 certification • When the conduit option is used, the drive meets UL Enclosed Type 1 specifications Flange Type If the space is too small, a heat sink can be installed outside the panel DC Reactor A built-in DC reactor to improve power factors and reduce THD is installed. • DC Reactor built-in as a standard for 400V 37~500kW Built-in EMC Filter A built-in EMC filter to respond to the specifications for noise reduction • ㆍ400V 0.75~30kW Built-in as default (C3) • ㆍ400V 37~55kW Built-in option can be selected (C3) ※ 75~90kW satisfies EMC specifications even without a filter ​Compliant​ with Global Specifications UL Plenum Rated (American standards for conditional fire safety) ※ Suitable for installation in compartments handing conditioned air Smart Copier • Power-free Operation • LED Feedback • Parameters Read/Write • Easy to Install Data Flow in Smart Copier 2. Efficient Use of Space Side-by-Side Installation The size of the control board is significantly reduced when multiple drives are installed by minimizing the distance between products installed ※Side-by-side installation is unavailable for 37~90kW Reduced Size Main components are optimally deployed through thermal radiation analysis and 3D design to reduce size by 34% compared to iP5A (Volume based) 3. Stable System Control LSLV-H100 drives are intelligent drives equipped with various protective and operation functions for continuous stable operation in response to external environmental changes. Soft Fill Operation Prevents pump damage caused by extreme pressure change during initial operation of pumps or inside pumps. Start Ramp & End Ramp Prevents pump damage by changing ramps using the acceleration/deceleration time setting upon initial pump operation Dec Valve Ramp Prevents pump and pipe damage caused by sudden pressure changes when pumps are stopped or a pump valve is closed, Deceleration time may be set. Multi Motor Control MMC is used when a single drive is used to control multiple motors in the pump system. It can control 1 main motor and 5 auxiliary motors. Scheduling (Time Event: Real Time Clock) Prevents pump damages caused by dramatic pressure changes during initial operation or pumps or inside pumps. Flow Compensation Compensates for hydraulic loss that occurs when the length of pipes are too long, adding a compensation rate depending on the inverter output frequency. Energy-saving Display (Payback Counter) Commercial energy consumption is compared to the amount of energy used by the drive to calculate the amount of energy saved. Power-on Resume When the drive restarts after it was stopped due to power interruption upon communication control, ‘Power-on Resume’ is used to follow the previous control command. Sleep, Sleep Boost, Wake-up It is used to put the drive on standby and restarts it using the amount of energy used by the drive to calculate the amount of energy saved. Auto Torque Boost The drive outputs voltage for the drive by controlling the level of boost to fit the load by itself. Lubrication Control When a control command is made in the Flow/Oiling Systems, lubrication signals are output for a certain period before the motors are started. Drive control immediately begins form the signal output point until the signals are turned off after the set time Damper Control When a damper exists in the system configuration, the drive will command the damper to open/close or receive feedback signals for protection. Detection of Pipe Broken Upon PID operation, pipe damages or leakage is detected to display a warning or a trip. Level Detection When the drive is operated under a frequency that is beyond the set frequency and source (voltage, current, and etc.) values to be detected are above or below the user set values, it generates a trip or activates a relay for protective operation Pre-Heat Pre-heats motors by direct current output when the motors are at fixed state of time in order to prevent condensation in the motors Under Load Protection When running pumps including no flow and dry pumps under the set frequency, the drive issues a warning function and when the trip is generated, free-run, deceleration, or stop can be selected. Macro Setting If a particular application is selected, frequently used parameters and set values are changed and registered in a macro group. KEB, Kinetic Energy Buffering Upon loss or momentary interruption of input power, if the KEB is set, the drive maintains a DC Link Voltage using regenerated energy from the motor during the interruption period. Pump Clean Upon pump operation, the efficiency of pumps may decline when foreign substances are stuck in an impeller. The pump clean removes foreign substances to extend pump life. Aux Motor PID Compensation Pipe flow increases and conduit pressure decreases as the number of auxiliary motors increases. The ‘Aux Motor PID Compensation’ is used to compensate pressure loss suitable for the given motor when operating auxiliary motors. Load Tuning Establishes load (current & power) curves based on drive frequency so as to make load characteristics curve required for ‘Under Load’ and ‘Pump Clean.’ Fire Mode When an emergency such as fire occurs at the suction/exhaust fans, but hardware did not fail nor has a critical defect, the drive is continuously operates to protect other systems under the set frequency and direction. Frame Design Type Designation Specification 3-Phase 200V (0.75~18.5kW) · Motor capacity is based on use of 4-pole standard motors. · 200V Class is for 220V and 400V Class is for 440V. · Rated output current if limited depending on the carrier frequency (CON-04) setting 3-Phase 400V (0.75~22kW) Model Name LSLV ㅁㅁㅁㅁH100-2 ㅁㅁㅁㅁ000800150022003700550075011001500185 Applied Motor[HP]TBD7.510152025 [kW]5.57.5111518.5 Rated OutputRated Capacity (kVA)8.411.416.021.326.3 Rated Current2230425669 Output Frequency0~400Hz Output Voltage (V)3-Phase 200~240V Rated InputService Voltage (V)3-Phase 200~240VAC (-15%~+10%) Input Frequency50~60Hz ( .5%) Rated Current (A)23.732.746.462.377.2 Weight [kg]3.33.33.34.67.1 · Motor capacity is based on use of 4-pole standard motors. · 200V Class is for 220V and 400V Class is for 440V. · Rated output current if limited depending on the carrier frequency (CON-04) setting 3-Phase 400V (30.0~90.0kW) Model Name LSLV ㅁㅁㅁㅁH100-4 ㅁㅁㅁㅁ0008001500220037005500750110015001850220 Applied Motor[HP]TBD7.51015202530 [kW]5.57.5111518.522 Rated OutputRated Capacity (kVA)9.112.218.32329.034.3 Rated Current121624303845 Output Frequency0~400Hz Output Voltage (V)3-Phase 200~240V Rated InputService Voltage (V)3-Phase 200~240VAC (-15%~+10%) Input Frequency50~60Hz ( .5%) Rated Current (A)12.217.526.533.442.550.7 Weight [kg]3.33.33.44.64.87.5 · Motor capacity is based on use of 4-pole standard motors. · 200V Class is for 220V and 400V Class is for 440V. · Rated output current if limited depending on the carrier frequency (CON-04) setting 3-Phase 400V (110.0~500.0kW) Model Name LSLV ㅁㅁㅁㅁH100-4 ㅁㅁㅁㅁ030003700450055007500900 Applied Motor[HP]40506075100125 [kW]303745557590 Rated OutputRated Capacity (kVA)46.557.169.482.0108.2128.8 Rated Current617591107142169 Output Frequency0~400Hz Output Voltage (V)3-Phase 380~480V Rated InputService Voltage (V)3-Phase 380~480VAC (-15%~+10%) Input Frequency50~60Hz ( .5%) Rated Current (A)69.169.384.6100.1133.6160.0 Weight [kg]7.52635354343 · Motor capacity is based on use of 4-pole standard motors. · 200V Class is for 220V and 400V Class is for 440V. · Rated output current if limited depending on the carrier frequency (CON-04) setting More Information Model Name LSLV ㅁㅁㅁㅁH100-4 ㅁㅁㅁㅁ1100132016001850220025003150355040005000 Applied Motor[HP]150200250300350400500550650800 [kW]110132160185220250315355400500 Rated OutputRated Capacity (kVA)170201248282329367467520587733 Rated Current223264325370432481613683770962 Output Frequency0~400Hz Output Voltage (V)3-Phase 380~500V Rated InputService Voltage (V)3-Phase 380~500VAC (-15%~+10%) Input Frequency50~60Hz ( ±5%) Rated Current (A)215.1254.6315.3358.9419.1469.3598.1666.4751.3938.6 Weight [kg]55.855.874.774.7120.0120.0185.5185.5185.5265
