Tổng quan

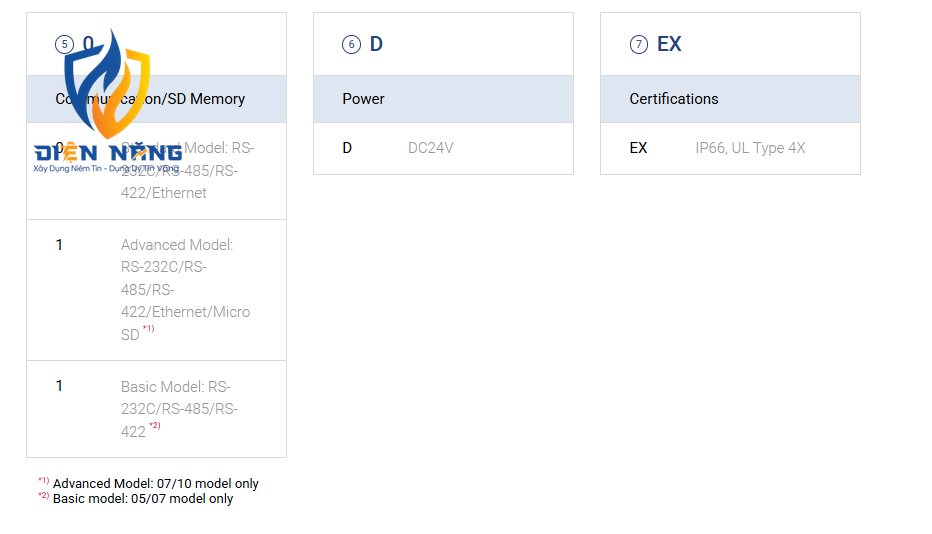

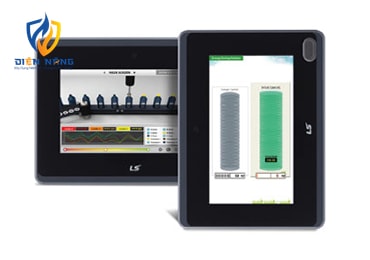

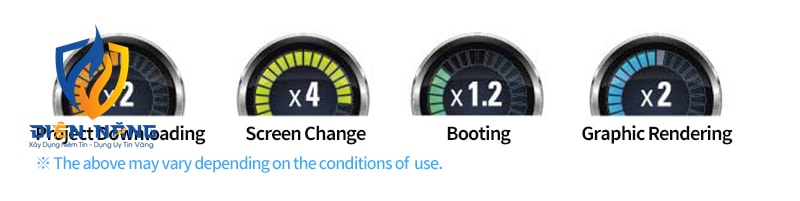

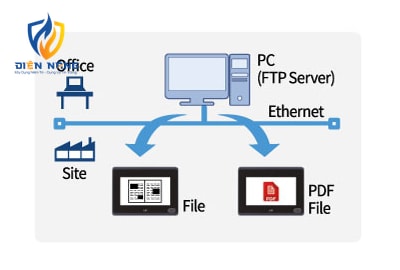

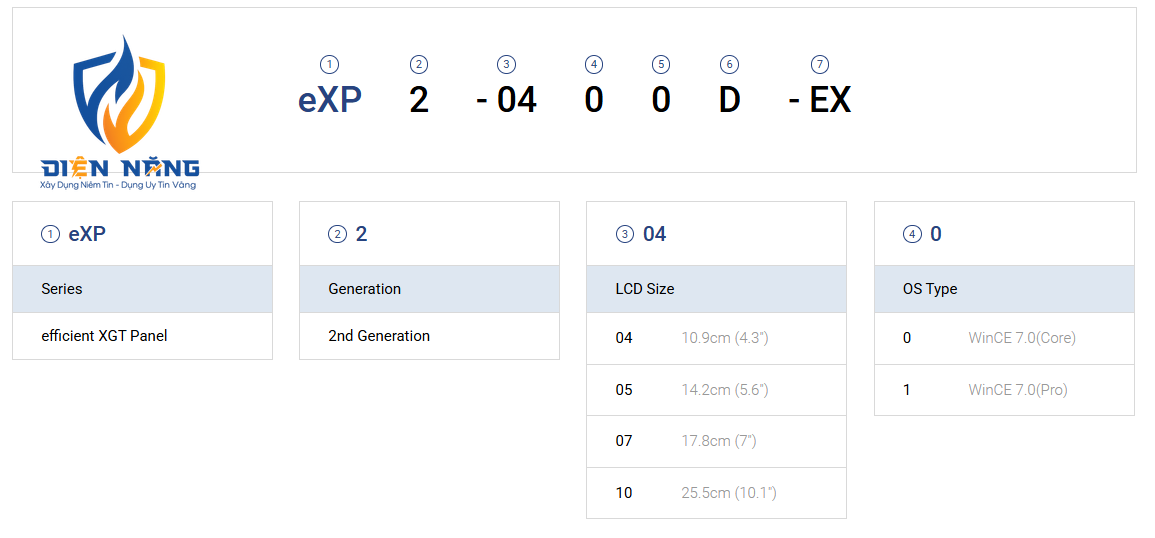

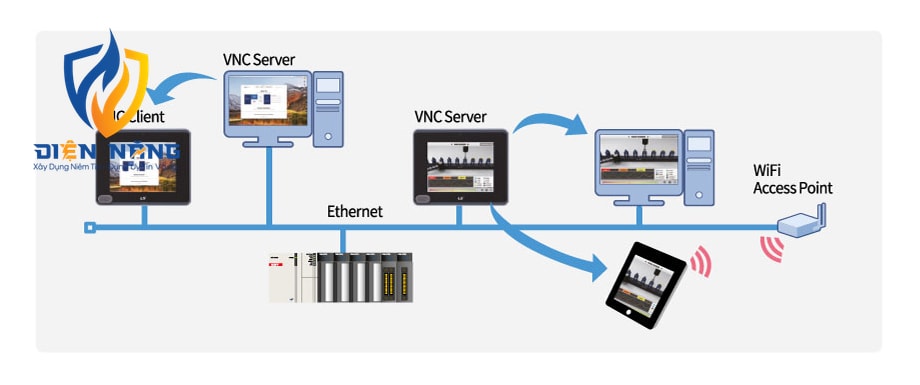

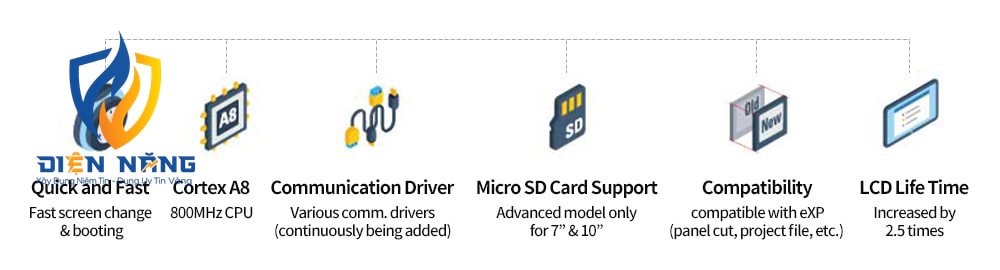

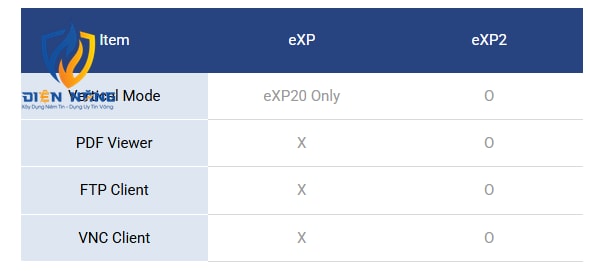

eXP2 Series More Convenient Control User-oriented interface, more powerful performance, fast screen changes and high levels of responsiveness. Contact us Features Performance Enhancement (eXP → eXP2) More Convenient Control User-oriented interface, more powerful performance, fast screen changes and high levels of responsiveness. Portrait Mode • Vertical Mounting is available • Setting in XP-Builder: [COMMON]-[Project Property Setting] PDF Viewer • PDF files can be displayed on XGT Panel. • In the event of an alarm, the content of the alarm’s trouble shooting can be checked on site as a PDF file. • PDF files on an FTP server can be displayed using a PDF viewer object. FTP Client • FTP client is an object that can connect to the FTP server, display the list of files and directories on the FTP server, and download the selected file. • PDF files on an FTP server can ve displayed using a PDF viewer object. VNC Viewer • Remotely monitoring PC or HMI using VNC Viewer is available• Download VNC server to HMI using XP-Manager. • Install a universal VNC server on your PC. (Ultra VNC, Real VNC, etc.) • Add ‘VNC Viewer’ object to the project screen. Model Naming Hardware Description Dimension Specification ① Front Screen · Analog Touch pannel ② Power Status LED · HMI status indication (On: Blue) ③ Panel Mounting Hole · Mounting bracket ④ USB Device · Logging/Recipe/Screen data backup · Download/Upload project · Upload project file · XGT Panel update ⑤ Micro SD Card · Backup of data such as alarm/logging/recipe and storage of screen data · Send/Receive project data, Send XP-runtime ⑥ USB Host · USB memory connection: logging/recipe/screen data backup · Project data transfer/backup · User interface connection: mouse/keyboard · Printer connection⑦ Battery Cover · Reset switch, Backup battery, Setting switch * Please refer to user’s manual. ⑧ Power Terminal · Power input (24VDC) ⑨ Ethernet Terminal · Ethernet: 10Base-T/100Base-TX 1) Send project data 2) Receive backup data and project file 3) Send XP-Runtime 4) PLC/Control device communication ⑩ COM3 Connector · RS-422/485: PLC or control device communication ⑪ COM1, COM2 Connector · RS-485, RS-232C: PLC or control device communication □*: (WinCE 7.0 Core), 1 (WinCE 7.0 Pro) Note 1) IP66 for UL Type 4X models. More Information ItemeXP2- 04□*0DeXP2- 05□*0DeXP2- 05□*2DeXP2- 07□*0DeXP2- 07□*1DeXP2- 07□*2DeXP2- 10□*0DeXP2- 10□*1D Display TypeTFT color LCDTFT color LCDTFT color LCD Screen Size10.9cm(4.3")14.2cm(5.6")17.8cm(7")25.9cm(10.1") Display Resolution480 x 272 pixel640 x 480 pixel800 x 4801024 x 600 Color Indication24Bit color (16.7M)18Bit color (262,144)24Bit color (16.7M)24Bit color (16.7M) Indication DegreeLeft/Right: 60 deg. Upper: 40 deg. Lower: 50 deg.Left/Right: 60 deg. Upper: 40 deg. Lower: 60 deg.Left/Right: 70 deg. Upper: 50 deg. Lower: 70 deg.Left/Right: 70 deg. Upper: 50 deg. Lower: 70 deg. BacklightLED Type (Supports Backlight Auto-off Function)LED Type (Supports Backlight Auto-off Function)LED Type (Supports Backlight Auto-off Function) Backlight Duration50,000 Hours20,000 Hours50,000 Hours30,000 Hours Touch Panel4-Wire Resistive, Analog4-Wire Resistive, Analog4-Wire Resistive, Analog Audio OutputMagnetic Buzzer (85dB)Magnetic Buzzer (85dB)Magnetic Buzzer (85dB) Process800MHz800MHz800MHz MemoryDrawing Memory64MB64MB64MB Operating RAM512MB512MB512MB Backup RAM128KB128KB128KB Backup DataDate/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile DeviceDate/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile DeviceDate/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile Device Battery LifeApprox. 3 years (Operating Ambient Temperature of 50ºC)Approx. 3 years (Operating Ambient Temperature of 25ºC)Approx. 3 years (Operating Ambient Temperature of 50ºC) Ethernet1 Channel, IEEE802.1a, 10Base-T/100Base-TX-1 Channel, IEEE802.1a, 10Base-T/100Base-TX-1 Channel, IEEE802.1a, 10Base-T/100Base-TX USB Host1 Channel, USB 2.0 Host (Mouse, keyboard, printer, USB flash drive, etc.)1 Channel, USB 2.0 Host (Mouse, keyboard, printer, USB flash drive, etc.)1 Channel, USB 2.0 Host (Mouse, keyboard, printer, USB flash drive, etc.) USB Device-1 Channel, USB 2.0 Device (for Download and Upload Project File)1 Channel, USB 2.0 Device (for Download and Upload Project File)1 Channel, USB 2.0 Device (for Download and Upload Project File) Micro SD Card---1 Channel SDHC Class10--1 Channel SDHC Class10 RS-485, RS-232C1 Channel, RS-232C (DSUB 9/Male Type)2 Channel, RS-485, RS-232C (DSUB 9/Male Type)2 Channel, RS-485, RS-232C (DSUB 9/Male Type) RS-422/4851 Channel, RS-422/485 (DSUB 9/Male Type)1 Channel, RS-422/485 (Terminal Type)1 Channel, RS-422/485 (Terminal Type) Multi-languageUp to 12 Language SimultaneouslyUp to 12 Language SimultaneouslyUp to 12 Language Simultaneously AnimationGIF Format is AvailableGIF Format is AvailableGIF Format is Available RecipeAvailableAvailableAvailable Data LoggingAvailableAvailableAvailable ExecutorAvailableAvailableAvailable CertificationsCE, UL(cUL), UL Type 4X, KCCE, UL(cUL), UL Type 4X, KCCE, UL(cUL), KCCE, UL(cUL), UL Type 4X, KCCE, UL(cUL), KCCE, UL(cUL), UL Type 4X, KC Protection StandardIP65 Note 1)IP65 Note 1)IP65 Note 1) Dimension (mm)128 x 102 x 32.5165 x 132.5 x 36.1208 x 154 x 44.4276 x 218 x 35.1 Panel Cut (mm)119 x 93156 x 123.5192 x 138260 x 202 Rated VoltageDC24VDC24VDC24V Power Consumption (W)45.55.566 Weight(Kg)0.270.430.430.590.590.581.01.0
| - | 1 Channel, IEEE802.1a,10Base-T/100Base-TX | 1 ChannelSDHC Class10 |
|---|---|
| 0.58 | 1.0 |
| Item | eXP2-04□*0D |
| □* | (WinCE 7.0 Core), 1 (WinCE 7.0 Pro) |
| Lower | 50 deg.Left/Right: 60 deg. | 60 deg.Left/Right: 70 deg. | 70 deg.Left/Right: 70 deg. |
| Upper | 40 deg. | 50 deg. |
| Memory | DrawingMemory |
| Recipe | Available |
| Process | 800MHz |
| Ethernet | 1 Channel, IEEE802.1a,10Base-T/100Base-TX |
| Executor | Available |
| USB Host | 1 Channel, USB 2.0 Host(Mouse, keyboard, printer, USB flash drive, etc.) |
| Animation | GIF Format is Available |
| Backlight | LED Type (Supports Backlight Auto-off Function) |
| BackupRAM | 128KB |
| RS-422/485 | 1 Channel, RS-422/485 (DSUB 9/Male Type) | PLC or control device communication |
| USB Device | - |
| Weight(Kg) | 0.27 |
| 156 x 123.5 | 192 x 138 |
| Backup Data | Date/Hour Data, Logging/Alarm/Recipe Dataand Nonvolatile Device |
| Screen Size | 10.9cm(4.3") |
| Touch Panel | 4-Wire Resistive, Analog |
| 14.2cm(5.6") | 17.8cm(7") |
| 20,000 Hours | 50,000 Hours |
| Audio Output | Magnetic Buzzer (85dB) |
| Battery Life | Approx. 3 years(Operating Ambient Temperature of 50ºC) |
| Data Logging | Available |
| Display Type | TFT color LCD |
| OperatingRAM | 512MB |
| Micro SD Card | - |
| Rated Voltage | DC24V |
| eXP2-05□*0D | eXP2-05□*2D |
| eXP2-07□*0D | eXP2-07□*1D |
| eXP2-07□*2D | eXP2-10□*0D |
| Certifications | CE, UL(cUL),UL Type 4X, KC |

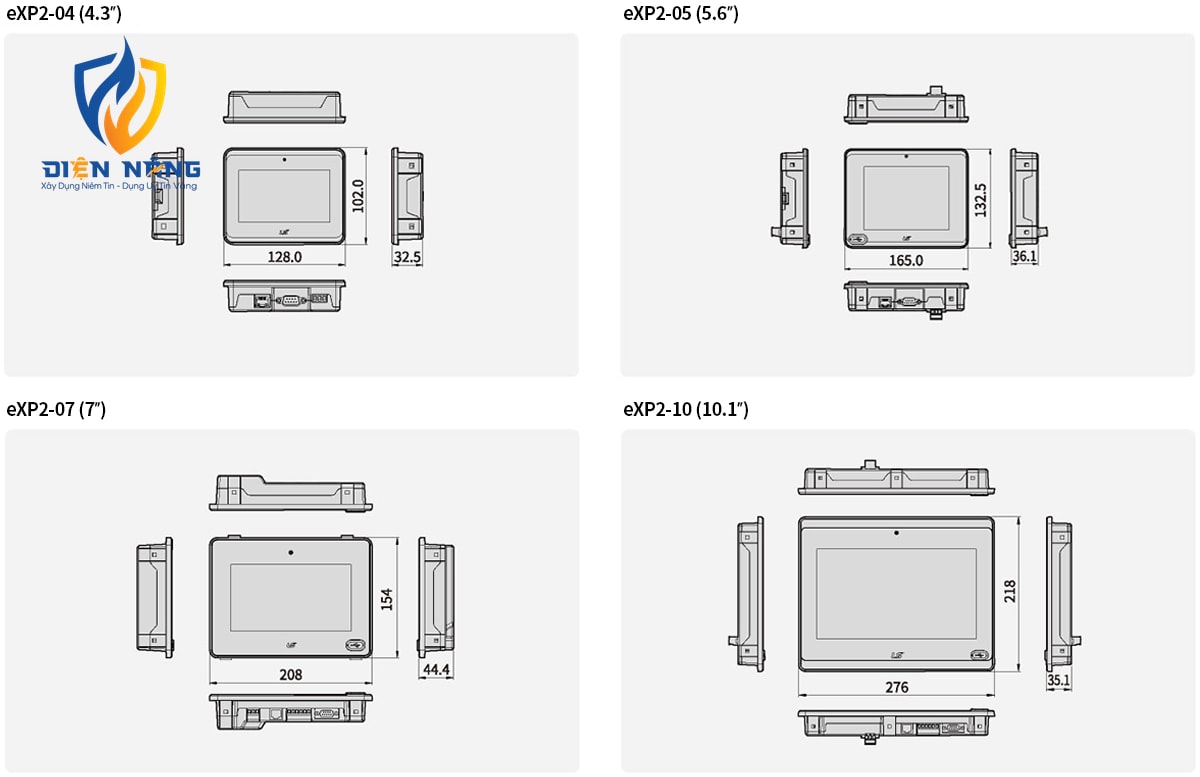

| Dimension (mm) | 128 x 102 x 32.5 |
| Multi-language | Up to 12 Language Simultaneously |
| Panel Cut (mm) | 119 x 93 |
| 640 x 480 pixel | 800 x 480 |
| RS-485, RS-232C | 1 Channel, RS-232C (DSUB 9/Male Type) | PLC or control device communication |
| Thương hiệu | LS Electric |
| Color Indication | 24Bit color (16.7M) |
| Indication Degree | Left/Right: 60 deg. Upper: 40 deg. Lower: 50 deg. |
| 165 x 132.5 x 36.1 | 208 x 154 x 44.4 |
| Backlight Duration | 50,000 Hours |
| Display Resolution | 480 x 272 pixel |
| Protection Standard | IP65 Note 1) |
| 1 ChannelSDHC Class10 | - |
| 18Bit color (262,144) | 24Bit color (16.7M) |
| Power Consumption (W) | 4 |
| Setting in XP-Builder | [COMMON]-[Project Property Setting] |
| USB memory connection | logging/recipe/screen data backup |
| HMI status indication (On | Blue) |
| User interface connection | mouse/keyboard |
| CE, UL(cUL), UL Type 4X,KC | CE, UL(cUL), KC |
| CE, UL(cUL), UL Type 4X, KC | CE, UL(cUL), KC |
| Indication DegreeLeft/Right | 60 deg. |
| 1 Channel, RS-422/485 (Terminal Type) | 1 Channel, RS-422/485(Terminal Type) |
| 2 Channel, RS-485, RS-232C (DSUB 9/Male Type) | 2 Channel, RS-485, RS-232C(DSUB 9/Male Type) |
| LED Type (Supports Backlight Auto-off Function) | LED Type (Supports BacklightAuto-off Function) |
| Left/Right: 60 deg. Upper: 40 deg. Lower: 60 deg. | Left/Right: 70 deg. Upper: 50 deg. Lower: 70 deg. |
| Approx. 3 years(Operating Ambient Temperature of 25ºC) | Approx. 3 years (Operating AmbientTemperature of 50ºC) |
| 1 Channel, USB 2.0 Device(for Download and UploadProject File) | 1 Channel, USB 2.0 Device(for Download and Upload Project File) |
| Date/Hour Data, Logging/Alarm/Recipe Dataand Nonvolatile Device | Date/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile Device |
| 1 Channel, USB 2.0 Host(Mouse, keyboard, printer, USB flash drive, etc.) | 1 Channel, USB 2.0 Host(Mouse, keyboard, printer, USB flashdrive, etc.) |

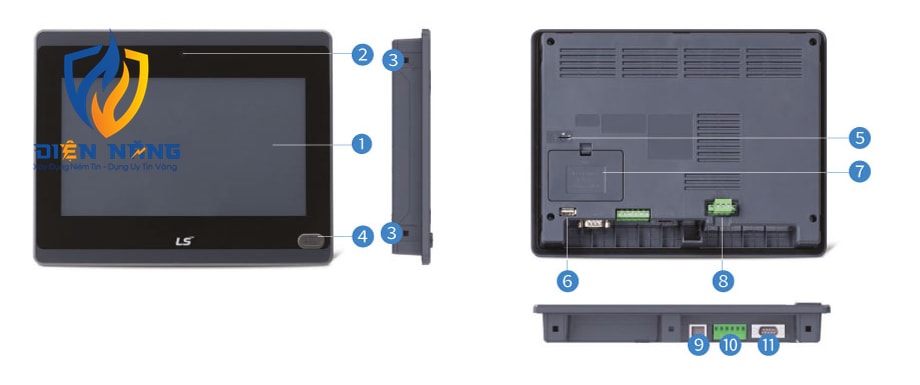

| ① Front Screen· Analog Touch pannel② Power Status LED· HMI status indication (On: Blue)③ P | ⑦ Battery Cover· Reset switch, Backup battery, Setting switch * Please refer to user’s manual.⑧ Power Terminal· Power input (24VDC)⑨ Ethernet Terminal· Ethernet: 10Base-T/100Base-TX 1) Send project data 2) Receive backup data and project file 3) Send XP-Runtime 4) PLC/Control device communication⑩ COM3 Connector· RS-422/485: PLC or control device communication⑪ COM1, COM2 Connector· RS-485, RS-232C: PLC or control device communication |
eXP2 Series More Convenient Control User-oriented interface, more powerful performance, fast screen changes and high levels of responsiveness. Contact us Features Performance Enhancement (eXP → eXP2) More Convenient Control User-oriented interface, more powerful performance, fast screen changes and high levels of responsiveness. Portrait Mode • Vertical Mounting is available • Setting in XP-Builder: [COMMON]-[Project Property Setting] PDF Viewer • PDF files can be displayed on XGT Panel. • In the event of an alarm, the content of the alarm’s trouble shooting can be checked on site as a PDF file. • PDF files on an FTP server can be displayed using a PDF viewer object. FTP Client • FTP client is an object that can connect to the FTP server, display the list of files and directories on the FTP server, and download the selected file. • PDF files on an FTP server can ve displayed using a PDF viewer object. VNC Viewer • Remotely monitoring PC or HMI using VNC Viewer is available• Download VNC server to HMI using XP-Manager. • Install a universal VNC server on your PC. (Ultra VNC, Real VNC, etc.) • Add ‘VNC Viewer’ object to the project screen. Model Naming Hardware Description Dimension Specification ① Front Screen · Analog Touch pannel ② Power Status LED · HMI status indication (On: Blue) ③ Panel Mounting Hole · Mounting bracket ④ USB Device · Logging/Recipe/Screen data backup · Download/Upload project · Upload project file · XGT Panel update ⑤ Micro SD Card · Backup of data such as alarm/logging/recipe and storage of screen data · Send/Receive project data, Send XP-runtime ⑥ USB Host · USB memory connection: logging/recipe/screen data backup · Project data transfer/backup · User interface connection: mouse/keyboard · Printer connection⑦ Battery Cover · Reset switch, Backup battery, Setting switch * Please refer to user’s manual. ⑧ Power Terminal · Power input (24VDC) ⑨ Ethernet Terminal · Ethernet: 10Base-T/100Base-TX 1) Send project data 2) Receive backup data and project file 3) Send XP-Runtime 4) PLC/Control device communication ⑩ COM3 Connector · RS-422/485: PLC or control device communication ⑪ COM1, COM2 Connector · RS-485, RS-232C: PLC or control device communication □*: (WinCE 7.0 Core), 1 (WinCE 7.0 Pro) Note 1) IP66 for UL Type 4X models. More Information ItemeXP2- 04□*0DeXP2- 05□*0DeXP2- 05□*2DeXP2- 07□*0DeXP2- 07□*1DeXP2- 07□*2DeXP2- 10□*0DeXP2- 10□*1D Display TypeTFT color LCDTFT color LCDTFT color LCD Screen Size10.9cm(4.3")14.2cm(5.6")17.8cm(7")25.9cm(10.1") Display Resolution480 x 272 pixel640 x 480 pixel800 x 4801024 x 600 Color Indication24Bit color (16.7M)18Bit color (262,144)24Bit color (16.7M)24Bit color (16.7M) Indication DegreeLeft/Right: 60 deg. Upper: 40 deg. Lower: 50 deg.Left/Right: 60 deg. Upper: 40 deg. Lower: 60 deg.Left/Right: 70 deg. Upper: 50 deg. Lower: 70 deg.Left/Right: 70 deg. Upper: 50 deg. Lower: 70 deg. BacklightLED Type (Supports Backlight Auto-off Function)LED Type (Supports Backlight Auto-off Function)LED Type (Supports Backlight Auto-off Function) Backlight Duration50,000 Hours20,000 Hours50,000 Hours30,000 Hours Touch Panel4-Wire Resistive, Analog4-Wire Resistive, Analog4-Wire Resistive, Analog Audio OutputMagnetic Buzzer (85dB)Magnetic Buzzer (85dB)Magnetic Buzzer (85dB) Process800MHz800MHz800MHz MemoryDrawing Memory64MB64MB64MB Operating RAM512MB512MB512MB Backup RAM128KB128KB128KB Backup DataDate/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile DeviceDate/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile DeviceDate/Hour Data, Logging/Alarm/Recipe Data and Nonvolatile Device Battery LifeApprox. 3 years (Operating Ambient Temperature of 50ºC)Approx. 3 years (Operating Ambient Temperature of 25ºC)Approx. 3 years (Operating Ambient Temperature of 50ºC) Ethernet1 Channel, IEEE802.1a, 10Base-T/100Base-TX-1 Channel, IEEE802.1a, 10Base-T/100Base-TX-1 Channel, IEEE802.1a, 10Base-T/100Base-TX USB Host1 Channel, USB 2.0 Host (Mouse, keyboard, printer, USB flash drive, etc.)1 Channel, USB 2.0 Host (Mouse, keyboard, printer, USB flash drive, etc.)1 Channel, USB 2.0 Host (Mouse, keyboard, printer, USB flash drive, etc.) USB Device-1 Channel, USB 2.0 Device (for Download and Upload Project File)1 Channel, USB 2.0 Device (for Download and Upload Project File)1 Channel, USB 2.0 Device (for Download and Upload Project File) Micro SD Card---1 Channel SDHC Class10--1 Channel SDHC Class10 RS-485, RS-232C1 Channel, RS-232C (DSUB 9/Male Type)2 Channel, RS-485, RS-232C (DSUB 9/Male Type)2 Channel, RS-485, RS-232C (DSUB 9/Male Type) RS-422/4851 Channel, RS-422/485 (DSUB 9/Male Type)1 Channel, RS-422/485 (Terminal Type)1 Channel, RS-422/485 (Terminal Type) Multi-languageUp to 12 Language SimultaneouslyUp to 12 Language SimultaneouslyUp to 12 Language Simultaneously AnimationGIF Format is AvailableGIF Format is AvailableGIF Format is Available RecipeAvailableAvailableAvailable Data LoggingAvailableAvailableAvailable ExecutorAvailableAvailableAvailable CertificationsCE, UL(cUL), UL Type 4X, KCCE, UL(cUL), UL Type 4X, KCCE, UL(cUL), KCCE, UL(cUL), UL Type 4X, KCCE, UL(cUL), KCCE, UL(cUL), UL Type 4X, KC Protection StandardIP65 Note 1)IP65 Note 1)IP65 Note 1) Dimension (mm)128 x 102 x 32.5165 x 132.5 x 36.1208 x 154 x 44.4276 x 218 x 35.1 Panel Cut (mm)119 x 93156 x 123.5192 x 138260 x 202 Rated VoltageDC24VDC24VDC24V Power Consumption (W)45.55.566 Weight(Kg)0.270.430.430.590.590.581.01.0
