XGT Network module

Tổng quan

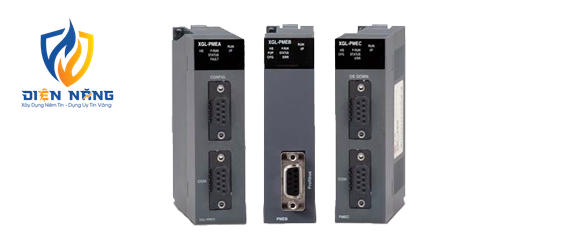

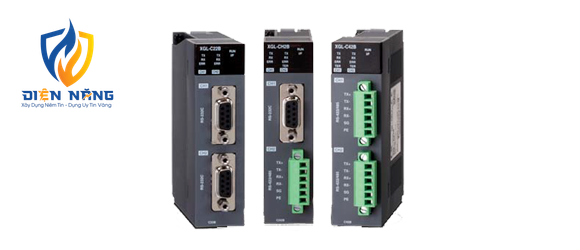

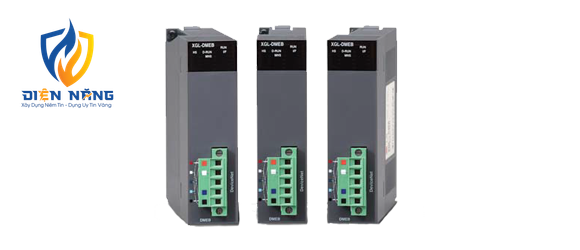

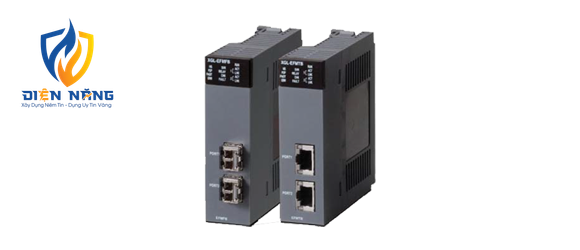

XGT Network module Contact us Features Cung cấp nhiều giải pháp mạng Ethernet và serial khác nhau Hệ thống mạng tốc độ cao và dung lượng dữ liệu lớn Chỉnh sửa giao thức và cài đặt tham số mạng dễ dàng với phần mềm XG5000 Độ tin cậy cao: Hệ thống vòng (RAPIEnet) Nhiều chức năng chẩn đoán và thông tin trạng thái mạng Hệ thống Ethernet XGT (XGL-EFMTB, XGL-EFMFB) • Hỗ trợ tốc độ truyền tối đa 1Gbps Hỗ trợ 1 kênh, 2 cổng • Cấu hình dạng tuyến (Line topology) với thiết lập tham số relay • Hai cổng (T.Pair / F.Optic) • Tải giao tiếp tối đa theo chuẩn máy chủ: 5.000pps • Mô-đun cáp quang (XGL-EFMTB) có đầu nối có thể thay thế, tốc độ truyền nâng cấp lên 1Gbps, dễ bảo trì • Hỗ trợ cả phiên bản cũ và mới của XG5000 • Giao diện người dùng (UI) khung dữ liệu do người dùng định nghĩa được cải tiến, dễ sử dụng hơn • Chức năng log được tăng cường giúp chẩn đoán đa dạng hơn • Hỗ trợ giao thức Ethernet mở và giao thức chuyên dụng (RAPIEnet) Specification XGT Computer-Link (XGL-C22B, XGL-CH2B, XGL-C42B) Features • Smart server recognizes the protocol (XGT dedicated communication or Modbus RTU/ASCII) automatically and activates • Repeater mode may be used use as an insulated repeater or convert RS-232C to RS422/485 • Contains a built- in termination resistor and can be set in the basic parameter window • Easy protocol editing and communication parameter setting: XG5000 • Long-distance communication via modem connection • Dedicated protocol for multi-drop configuration connectable up to 32 units • Flexible communication speed setting (300~115,200bps) • Supports full duplex and half duplex communication • Max. 12 modules available in one CPU • Various connection to MMI S/W (XGT, Modbus RTU, Modbus ASCII) • Various diagnosis functions using XG5000 (I/O, link status, service status) • Supports simultaneously dedicated service in remote connection Specifications ItemProduct Name XGL-EFMTBXGL-EFMFB Transmission SpecificationBaud rate10/100/1000Mbps100/1000Mbps Transmission TypeBase Band Max. extended length between nodes100m(Node-Hub)2km Max. segment length-- Max. number of nodesHub connection(Up to 9 recommended)30/Segments Distance between nodes-Integral times of 0.5m Max. protocol size1,500 Byte Access method to service zoneCSMA/CD Frame error checkCRC 16 = X15+X14+X13+....+X2+X+1 Basic SpecificationCurrent consumption (5V)100Mbps560mA750mA★ 1Gbps900mA740mA★ Weight146 g156 g- XGT DeviceNet system (XGL-DMEB) Features • DeviceNet protocol • Direct control of various I/O devices via Dnet system • Max. 63 slave modules controlled by one master module • Flexibility in network configuration: Multi-drop and T branch connection • Connectable to other master module and various slave modules • Provides an ‘ Auto Network Scan’ function and various information with configuration tools (N Configurator) • Communicates a high-speed link parameter • Connectable to various slave I/O including other module (Common I/O, Actuator, Switch, Optical switch, Valve, Inverter, A/D module, Position controller etc..) • Automatic monitoring of slave modules in the network: Auto-scan (XG5000) • Easy expansion: Up to 12 master modules • Network setting by N Configurator/XG5000 (Parameter setting, diagnosis and monitoring) Specifications ItemSpecification XGL-C22BXGL-CH2BXGL-C42B Serial communicat-ion channelRS-232C2 channels1 channel- Conforms to RS-232C standard Line config1:1 RS-422/485-1 channel2 channels Conforms to RS-422/485 standards Line config1:1, 1:n, n:1 Modem connection functionRemote communication with external devices is available via public telephone line by connecting external modem to the module.- Operating mode (specified per port)P2PXGT client, Modbus ASCII/RTU client, Use defined communication SERVERXGT server, Modbus ASCII/RTU server Data typeStart Bit1 Data Bit7 or 8 Stop Bit1 or 2 ParityEven/Odd/None Synchronization typeAsynchronous type Detecting errorBYTE SUM, WORD SUM, BYTE XOR, DLE AB, DLE SIEMENS, LSIS CRC, CRC 16, BYTE SUM 2’ COMP, BYTE SUM 1’s COMP 7BIT SUM, 7BIT XOR, CRC 16 IBM, CRC 16 CCITT Transmission speed (bps)300 / 600 / 1,200 / 1,800 / 2,400 / 3,600 / 4,800 / 7,200 / 9,600/19,200 / 38,400 / 57,600 / 64,000 / 76,800 / 115,200bps Station No. settingSetting range : 0-31, Max. station No. : 32 stations Transmission Distance(m)RS-232C: Max.15 (extendible if modem used)- -RS-422/485: Max. 1,200m Diagnosis functionStatus LED diagnosis XG5000 diagnosis service(Frame monitor, Status by service, Loop-Back diagnosis) History, Saving history Appearance size(mm)98(H) X 27(W) X 90(D) Current consumption(mA)420480520 Weight(g)121119116 XGT Profibus-DP [Pnet] system Features • Profibus-DP protocol • Communicates amongst a master automation device and distributed slave I/O device • Fast slave communication without an application layer • Transmission speed: 9.6Kbps ~ 12Mbps • Transmission distance: Max. 1,200m • Max. 126 slave stations available (32 stations per segment) • Network setting using N Configurator/XG5000 (Parameter setting, diagnosis and monitoring) • I/O data of master station: 7 kbytes • Automatic monitoring of slave modules in the network: Auto-scan (XG5000) • Multi master • Easy configuration tool: N Configurator / XG5000 Specifications ItemPerformance Specifications Transmission SpecificationTransmission Speed (kbps)125/250/500 Transmission TypeI/O ConnectionG2, UCMM I/O CommunicationPoll, Bit strobe, COS, Cyclic Communication distance(m)Thick Cable500 (125kbps)/250 (250kbps)/100 (500kbps) Thin Cable100 (125/250/500kbps) Terminal resistance (W)121 (1%, 1/4W) Max.drop length(m)125 kbps6 (Max. extended length 156) 250 kbps6 (Max. extended length 78) 500 kbps6 (Max. extended length 39) Data Packet0~8 Bytes Message Access ControlCSMA/NBA Network StructureTrunk/drop line Power/Signal cable inside the identical network cable Bus TypePoll type Max. number of nodsUp to 64 (including master) MAC IDs (MAC Identifier) System FeaturesInsertion and removal of nod available in voltage On status Operation VoltageDC 24V Diagnosis FunctionModule: Checks duplicated station/ Checks CRC error N Configurator: Detects defective station/Checks BusOff/Auto-scan function XG5000: Monitors High-speed link Master/Slave OperationAvailable only in master Parameter setting 1) N Configurator (CONFIG Port of Dnet I/F) 2) Setting to High-speed link of XG5000 (RS-232C of CPU module or USB port) XG5000 (High -speed link)Data process unitByte Send/Receive periodSelect among 20ms, 50ms, 100ms, 200ms, 500ms, 1s, 5s and 10s - Default : 20ms Max. communication pointSend 128,520points, Receive 128,520 points, 16,065 bytes respectively Max. block number63 (Setting range: 0~62) Max. point number per block2040 points (255 bytes) Basic SpecificationMax. modules installedUp to 12 (available on basic base and added base) Internal-consumed current (mA)350mA Weight (g)81g ItemXGL-PMEB Module TypeMaster Network TypeProfibus-DP StandardEN50170/DIN19245 InterfaceRS-485 (Electric) Transmission RouteBus type Modulation TypeNRZ MACLocal Token Ring Max. Distance & Transmission SpeedDistance (m)Transmission Speed (bps) 1,2009.6k/19.2k/31.25k/45.45k/93.7k 1,000187.5k 400500k 2001.5M 1003M/6M/12M Max. number of stations per network126 Max. number of stations per segment32 (including master & repeater) Max. number of modules per node24 modules Cable usedElectric-twist shielded pair cable Max. communication size7 KB Max. size per slave244 bytes Max. number of units to be installedXGK-CPUH/XGI-CPUUXGK-CPUS/CPUA/CPUE 1212 Installation PositionXGK-CPUH/XGI-CPUUXGK-CPUS/CPUA/CPUE Basic base ~ expansion stage 7Basic base ~ expansion stage 3 Communication Parameters to setXG5000 , SyCon (XGL-PMEA Dedicated Configuration Tool), N Configurator (XGL-PMEB/C Dedicated Configuration Tool) Internal-consumed current(mA)500 Weight (g)88 ItemXGL-PSEA StandardEN50170 / DIN 19245 InterfaceRS-485 (Electric) Media accessPolling TopologyBus ModulationNRZ Network InterfaceAuto baud rate Master / SlaveSlave Max. number of slave per network99 Max. number of slave per segment32 CableShield twisted pair cable Max. I/O data244 byte Configuration toolXG5000 Transmission distance and speedTrans. speed(kbps)9.619.293.75187.5500 Max. network length(m)1200120012001000400 Trans. speed(kbps)15003000600012000- Max. network length(m)200100100100- Max num. of node99(0~98) Max num. of transmission block24 Max num. of installation12ea (XGR: Max. 6ea) InstallationXGK-CPUU/H, XGI-CPUUMain base ~ 7th Expansion base XGK-CPUE, XGI-CPUEMain base ~ 1st Expansion base XGK-CPUA/S, XGI-CPUH/SMain base ~ 3rd Expansion base XGR-CPUH/F, XGR-CPUH/TMain base Current consumption (mA)410 Weight (g)103 More Information ItemXGL-PSRA StandardEN50170 / DIN 19245 InterfaceRS-485(Electric) Media accessPolling TopologyBus ModulationNRZ Network InterfaceAuto baud rate Master / SlaveSlave Max. number of slave per network100 Max. number of slave per segment32 CableShield twisted pair cable Max. number of communication points244 byte Transmission distance and speedTrans. speed(kbps)9.619.293.75187.5500 Max. network length(m)1200120012001000400 Trans. speed(kbps)15003000600012000- Max. network length(m)200100100100- Max num. of node100(0~99) Max. number of installation12 Max. digital I/O768 Max Analog I/O ChannelInput : 122ch. / Output : 96ch Current consumption (mA)600 Weight (g)114
