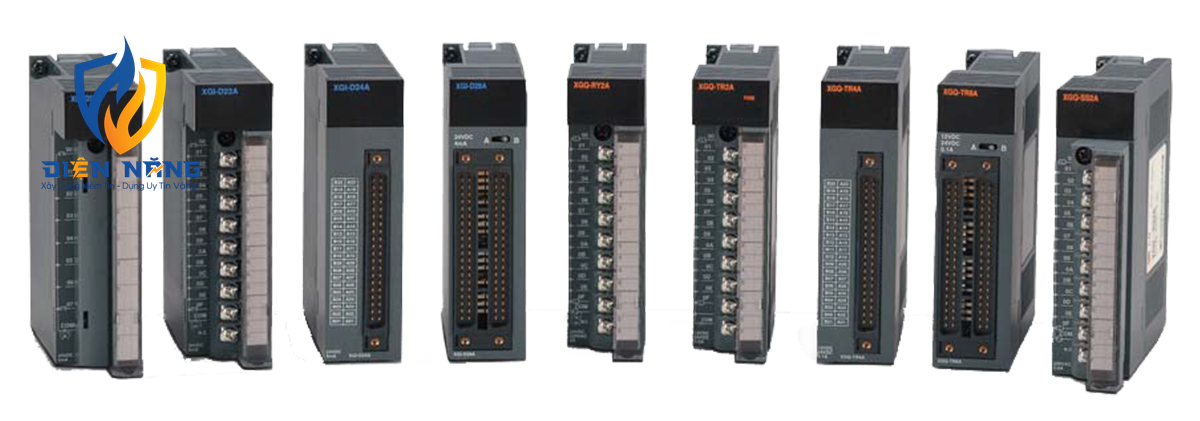

Mô-đun Ngõ Vào/Ngõ Ra XGT

Tổng quan

Mô-đun Ngõ Vào/Ngõ Ra XGT Contact us Features Mô-đun I/O 8, 16, 32, 64 điểm • Giám sát hoạt động qua đèn LED hiển thị • Bảo trì dễ dàng:• Thiết kế kiểu cầu đấu • Lắp đặt mô-đun bằng cơ chế một chạm, nhanh chóng và tiện lợi Specification Input module Output module ItemDC inputAC input TypeXGI-D21AXGI-D22AXGI-D22BXGI-D24AXGI-D24BXGI-D28AXGI-D28BXGI-A12AXGI-A21AXGI-A21C Input point81632641688 Rated input voltageDC24VAC100~120VFree voltageDC100/240V Rated input current4mA8mA17mA17mA ON voltage/current19V or more / 3mA or lessAC80V or more / 5mA or lessAC130V or more / 10mA or lessAC80V or more / 5mA or less OFF voltage/currentDC11V or more / 1.7mA or lessAC80V or more / 5mA or lessAC60V or more / 2mA or lessAC30V or more / 1mA or less ResponseOff→On1ms/5ms/10ms/20ms/70ms (set by CPU parameter) Initial value: 3ms15mA or less On→Off1ms/5ms/10ms/20ms/70ms (set by CPU parameter) Initial value: 3ms25mA or less Common (COM)8 points/COM16 points/COM32 points/COM16 points/COM8 points/COM1 points/COM Insulation methodPhotocouplerPhotocoupler Current consumption (mA)20305060302020 Weight (Kg)0.10.120.10.150.130.130.13 More Information ItemRelayTransistorTriac TypeXGQ-RY1AXGQ-RY2AXGQ-RY2BXGQ-TR1CXGQ-TR2AXGQ-TR2BXGQ-TR4AXGQ-TR4BXGQ-TR8AXGQ-TR8BXGQ-SS2A Ouput point816816326416 Rated input voltageDC12/24V, AC110/220VDC12/24VAC110/220V Rated input current1 Point2A2A0.5A0.1A0.6A Common5A0.1A4A2A4A Response timeOff→On10ms or less3ms or less1ms or less1ms or less On→Off12ms or less10ms or less1ms or less0.5cycle + 1ms or less Common (COM)1 piont/COM16 pionts/COM1 pionts/1COM32 pionts/COM16 points/COM Insulation methodRelayPhotocoupler Current consumption (mA)26050010070130230300 Weight (Kg)0.130.170.190.110.110.10.150.2 Surge killer-VaristorZener diodeVaristor External power supply-DC12/24VDC-
