SSD Series

Tổng quan

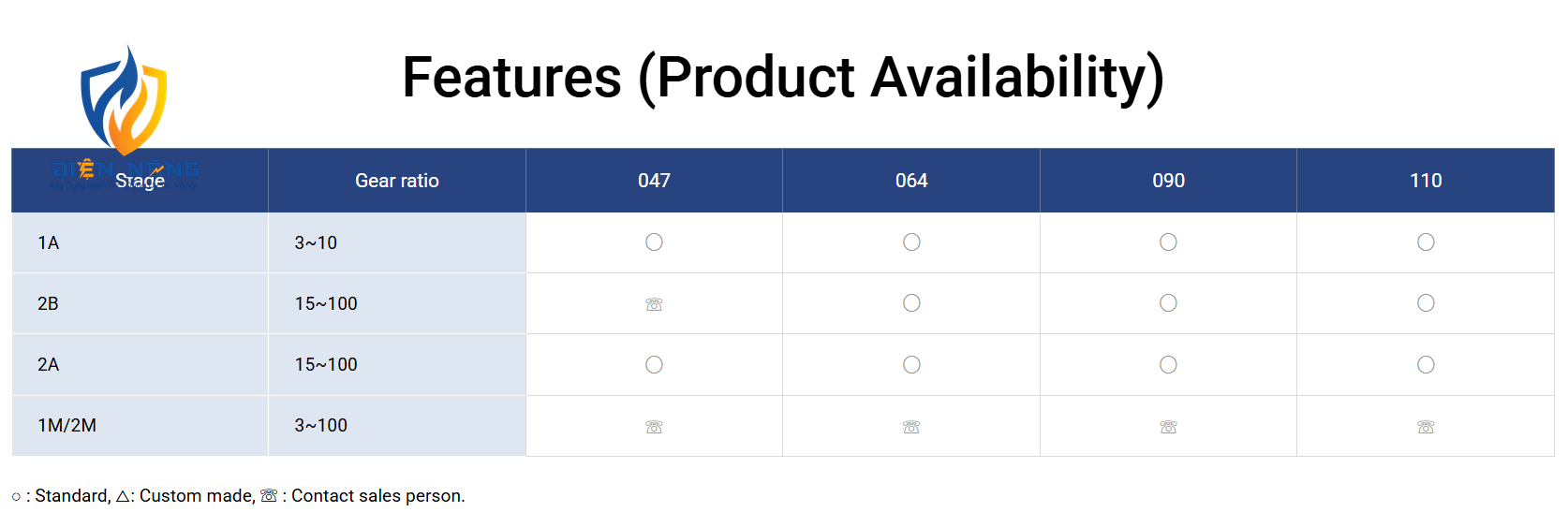

SSD Series Mặt bích đầu ra phẳng Hộp giảm tốc thẳng: Loại tiêu chuẩn/cao cấp Contact us Features Chọn kích cỡ tại đây Specification Please contact LS ELECTRIC sales person for ★ gear ratio (1) Considering safety factors, nominal output torque is calculated (2) Max. output torque is equivalent to 60% of the emergency stop torque More Information DivisionStageGear ratio047064090110 Nominal Output Torque (Nm)141951135276 51845137277 71641119254 101335102225 2201951138283 251845139281 351641121258 401952139284 501845139281 701641121258 1001335103228 Emergency Stop Torque (Nm)1,23~1003 times nominal output torque Nominal Input Speed (rpm)1,23~1004,0004,0003,0003,000 Max. Input Speed (rpm)1,23~1007,0006,0006,0004,000 Torsional Rigidity (Nm/Arcmin)1,23~1007133081 Max. Axial Load (N)1,23~10040100180350 Backlash (Arcmin)S13~10≤ 8≤ 8≤ 8≤ 8 215~100≤ 10≤ 10≤ 10≤ 10 P13~10≤ 5≤ 5≤ 5≤ 5 215~100≤ 7≤ 7≤ 7≤ 7 Service Life (Hrs)1,23~10020,000 (10,000 under continuous operation) Efficiency (%)13~10≥ 97 215~100≥ 94 Weight (kg)1A3~10≤ 0.7≤ 1.2≤ 3.0≤ 5.6 2A15~100≤ 1.0≤ 1.6≤ 3.7≤ 7.3 2B15~100-≤ 1.4≤ 3.5≤ 6.5 Operating Temp (℃)1,23~100-10 ~ 90 Lubrication1,23~100Grease (VIGO Grease RE #0) Degree of Gearbox Protection1,23~100IP65 Noise (dB)1,23~100≤ 58≤ 60≤ 62≤ 65 Inertia (㎏㎠)1A40.100.241.802.80 50.100.241.802.80 70.100.241.802.80 100.100.241.802.80 2B20~40-0.100.241.80 50~100-0.100.241.80 2A20~400.100.241.802.80 50~1000.100.241.802.80
