SAD Series

Tổng quan

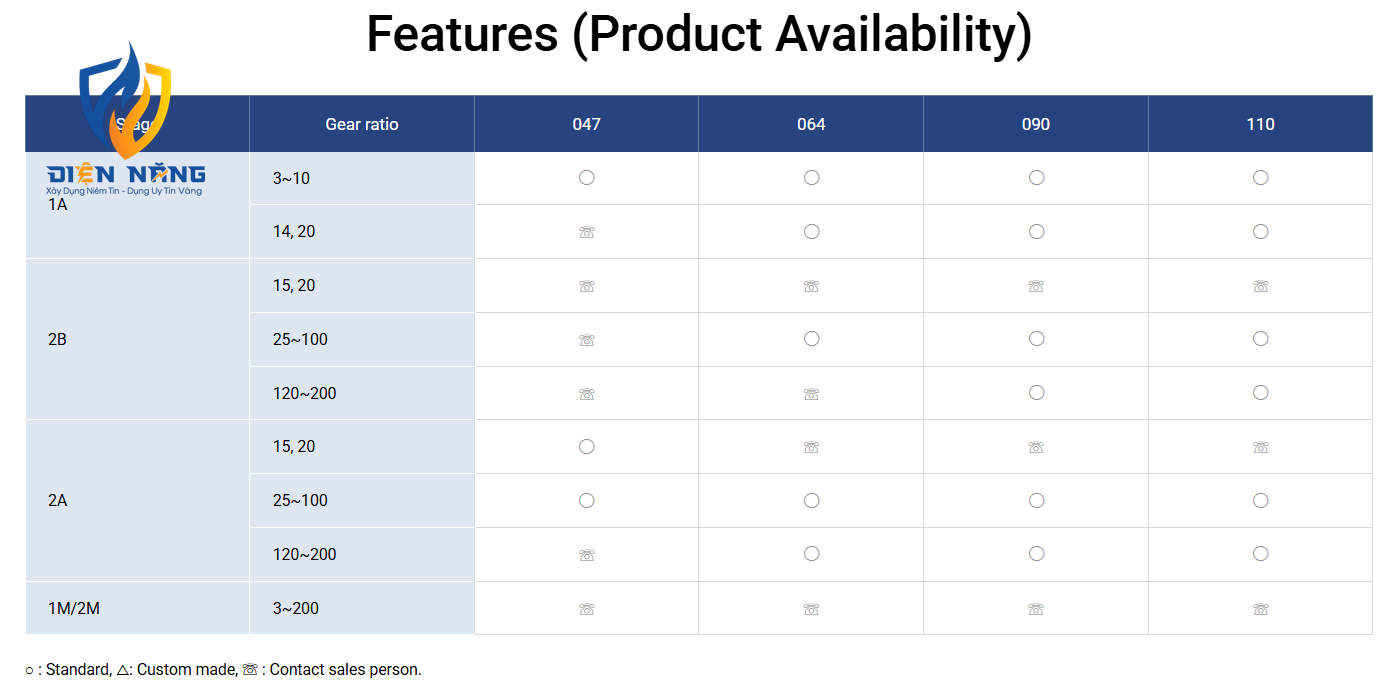

SAD Series Mặt bích đầu ra phẳng Hộp giảm tốc vuông góc: Loại tiêu chuẩn/cao cấp Contact us Features Chọn kích cỡ tại đây Specification Please contact LSIS sales person for ★ gear ratio. (1) Considering safety factors, nominal output torque is calculated. (2) Max. output torque is equivalent to 60% of the emergency stop torque. More Information DivisionStageGear ratio047064090110 Nominal Output Torque (Nm)141951135276 51845137277 71641119254 10153911294 14-47142309 20112268147 2251845139281 351641121258 401952139284 501845139281 701641121258 1001335103228 140--119254 200--11294 Emergency Stop Torque (Nm)1,23~2003 times nominal output torque Nominal Input Speed (rpm)1,23~2004,0004,0003,0003,000 Max. Input Speed (rpm)1,23~2007,0006,0006,0005,000 Torsional Rigidity (Nm/Arcmin)1,23~2007133081 Max. Axial Load (N)1,23~2001,0331,0702,9235,018 Backlash (Arcmin)S13~20≤ 10≤ 10≤ 10≤ 10 225~200≤ 12≤ 12≤ 12≤ 12 P13~20≤ 7≤ 7≤ 7≤ 7 225~200≤ 9≤ 9≤ 9≤ 9 Service Life (Hrs)1,23~20020,000 (10,000 under continuous operation) Efficiency (%)13~10≥ 95 215~200≥ 92 Weight (kg)1A3~20≤ 1.2≤ 2.3≤ 6.0≤ 10.8 2A25~200≤ 1.4≤ 2.6≤ 6.5≤ 12.0 2B25~200-≤ 2.0≤ 5.0≤ 10.0 Operating Temp (℃)1,23~200-10 ~ 90 Lubrication1,23~200Grease (VIGO Grease RE #0) Degree of Gearbox Protection1,23~200IP65 Noise (dB)1,23~200≤ 68≤ 70≤ 72≤ 74 Inertia (㎏㎠)1A3~100.180.422.697.15 14,20-0.422.697.15 B215,20--- 25~100-0.180.422.69 2B120~200--0.422.69 2A15,200.18-- 2A25~1000.180.422.697.15 120~200--2.697.15
