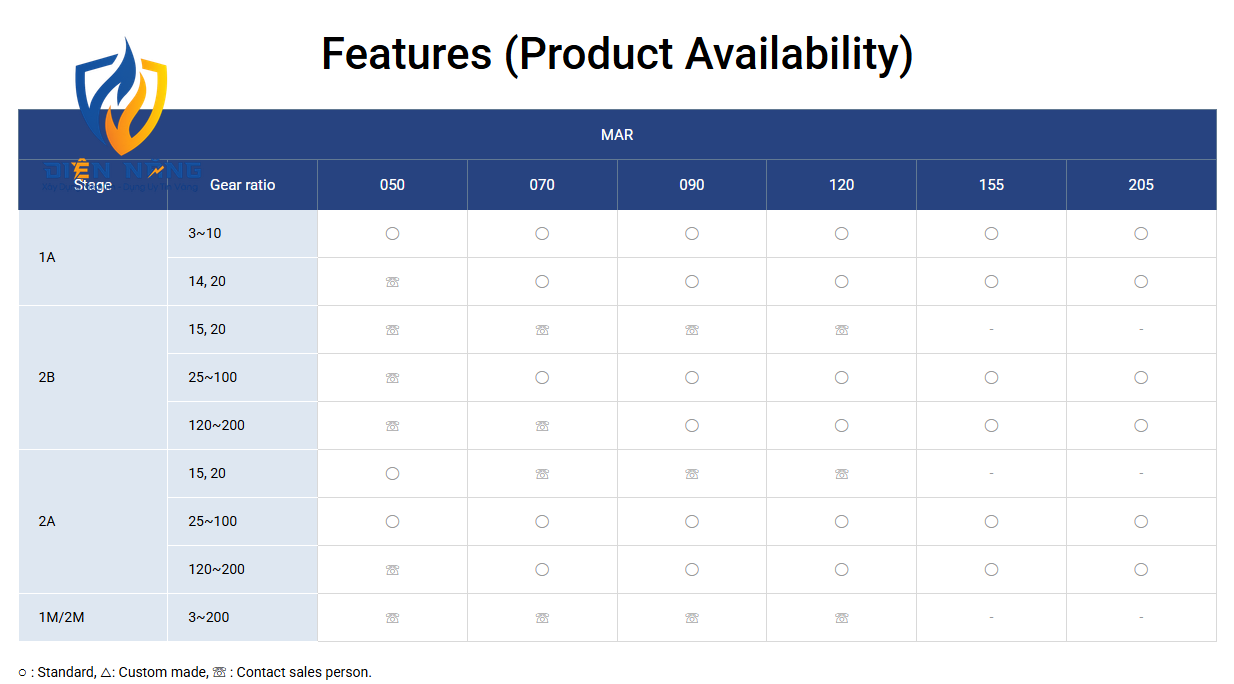

MAR Series Contact us Features Chọn kích cỡ tại đây Specification (1) Considering safety factors, nominal output torque is calculated. (2) Max. output torque is equivalent to 60% of the emergency stop torque. More Information DivisionStageGear ratio050070090120155205 Nominal Output Torque (Nm)132057148272484897 418511432955491,060 519541603326341,195 618501513115921,109 717481453055621,104 816441322795271,035 91442123254483947 101442121262500980 14-441453055621,104 1514----- 201442121262500980 22519541603326341,195 3018501513115921,109 3517481453055621,104 4016441322795271,035 451442123254483947 5019541603326341,195 6018501513115921,109 7017481453055621,104 8016441322795271,035 901442123254483947 1001442121262500980 120--1513115921,109 140--1453055621,104 1601322795271,035 180--123254483947 200--121262500980 Emergency Stop Torque (Nm)1,23~2003 times nominal output torque Nominal Input Speed (rpm)1,23~2005,0005,0004,0004,0003,0003,000 Max. Input Speed (rpm)1,23~20010,00010,0008,0008,0006,0006,000 Torsional Rigidity (Nm/arcmin)1,23~20037142655143 Max. Radial Load (N)1,23~2007501,2803,2006,8009,30015,100 Max. Axial Load (N)1,23~2003906901,6003,4004,5007,500 Backlash (Arcmin)S13~20≤ 8≤ 8≤ 8≤ 8≤ 8≤ 8 225~200≤ 11≤ 11≤ 11≤ 11≤ 11≤ 11 Service Life (Hrs)1,23~20020,000 (10,000 under continuous operation) Efficiency (%)13~20≥ 95 225~100≥ 92 Weight (kg)1A3~20≤ 0.9≤ 1.5≤ 6.0≤ 12.0≤ 24.0≤ 51.0 2A25~200≤ 1.2≤ 2.0≤ 7.5≤ 13.5≤ 26.0≤ 54.0 2B25~200-≤ 1.9≤ 7.3≤ 12.8≤ 25.0≤ 53.0 Operation Temp (℃)1,23~200-10 ~ 90 Lubrication1,23~200Grease (VIGO Grease RE #0) Degree of Gearbox Protection1,23~200IP65 Noise (dB)1,23~200≤ 58≤ 60≤ 63≤ 66≤ 69≤ 72 Inertia (㎏㎠)1A3~100.090.362.276.8823.5069.2 14,20-0.081.896.2321.7566.3 2B15,20------ 25~100-0.090.362.276.8823.5 120~200--0.321.896.2321.75 2A15,200.09----- 25~1000.090.362.276.8823.5069.2 120~200--1.896.2321.7566.3
