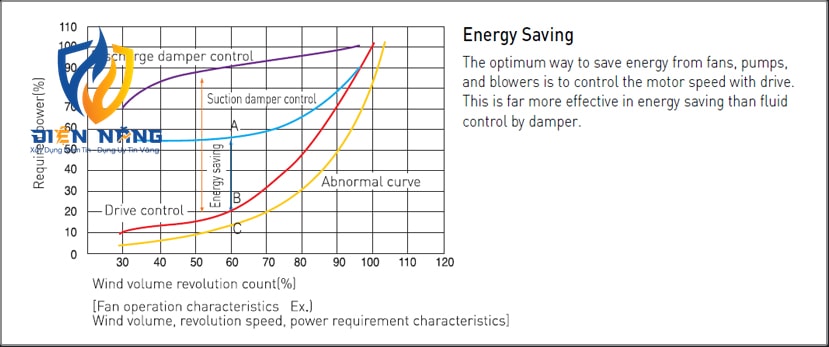

M1000/M1000A Contact us Features Series Overview Benefits Improved Power Quality Improved Input Power Quality and THD (Total Harmonic Distortion) by Adopting a Multi-winding Phase-shift Transformer • Application of extended delta-type transformer and separated-type multi-pulse rectifier drastically reduces input power THD, hence complying with IEEE-519 standards. • Input current almost identical to sine waves eliminates need for additional harmonic filters or active filters on the input side. Producing Multilevel PWM-type Sinusoidal Output • Compatible with conventional motors and cables to ensure it fits in with the existing system design. • Minimal impact of voltage reflection, allowing longer cable length between drive and motor. • Medium voltage drives minimize mechanical stress on motor, eliminating need for additional sine wave filters. Energy Saving Achieving Energy Saving and Minimum Energy Loss through Optimized Speed Control Guaranteeing High Operating Efficiency and Power Factor • Delivers a high-power factor at 95% or above with an independent built-in system without an additional power factor corrector. • Improves system efficiency with a drive-only system configuration without input/output filters. Compact Design Cell Bypass Function Automatically bypass of failed cells if cells connected in series randomly fail during operation, allowing continuous operation. Flying Start Automatically estimates speed of the rotating motor to reach the frequency without any system failures (trip) Ride-through Capability Mechanical energy of load is regenerated to continue operation for up to 5 cycles when power outage occurs. It allows continuous operation without stopping the drive or system. Synchronous Transfer Function Switching motor power from medium voltage drive to commercial power (bypass mode) or vice versa (drive mode) User Convenience Standard HD HMI Monitoring Maximizes User Convenience Communication • Standard built-in PLC supports customization (I/O extensibility, etc.) • Providing the improved system compatibility with field-bus communication options (Profibus, DeviceNet, Modbus, Metasys N2, LS BUS(RS485) Dimensions Specification More Information
| Thương hiệu | LS Electric |
|---|
Contact us Features Series Overview Benefits Improved Power Quality Improved Input Power Quality and THD (Total Harmonic Distortion) by Adopting a Multi-winding Phase-shift Transformer • Application of extended delta-type transformer and separated-type multi-pulse rectifier drastically reduces input power THD, hence complying with IEEE-519 standards. • Input current almost identical to sine waves eliminates need for additional harmonic filters or active filters on the input side. Producing Multilevel PWM-type Sinusoidal Output • Compatible with conventional motors and cables to ensure it fits in with the existing system design. • Minimal impact of voltage reflection, allowing longer cable length between drive and motor. • Medium voltage drives minimize mechanical stress on motor, eliminating need for additional sine wave filters. Energy Saving Achieving Energy Saving and Minimum Energy Loss through Optimized Speed Control Guaranteeing High Operating Efficiency and Power Factor • Delivers a high-power factor at 95% or above with an independent built-in system without an additional power factor corrector. • Improves system efficiency with a drive-only system configuration without input/output filters. Compact Design Cell Bypass Function Automatically bypass of failed cells if cells connected in series randomly fail during operation, allowing continuous operation. Flying Start Automatically estimates speed of the rotating motor to reach the frequency without any system failures (trip) Ride-through Capability Mechanical energy of load is regenerated to continue operation for up to 5 cycles when power outage occurs. It allows continuous operation without stopping the drive or system. Synchronous Transfer Function Switching motor power from medium voltage drive to commercial power (bypass mode) or vice versa (drive mode) User Convenience Standard HD HMI Monitoring Maximizes User Convenience Communication • Standard built-in PLC supports customization (I/O extensibility, etc.) • Providing the improved system compatibility with field-bus communication options (Profibus, DeviceNet, Modbus, Metasys N2, LS BUS(RS485) Dimensions Specification More Information
