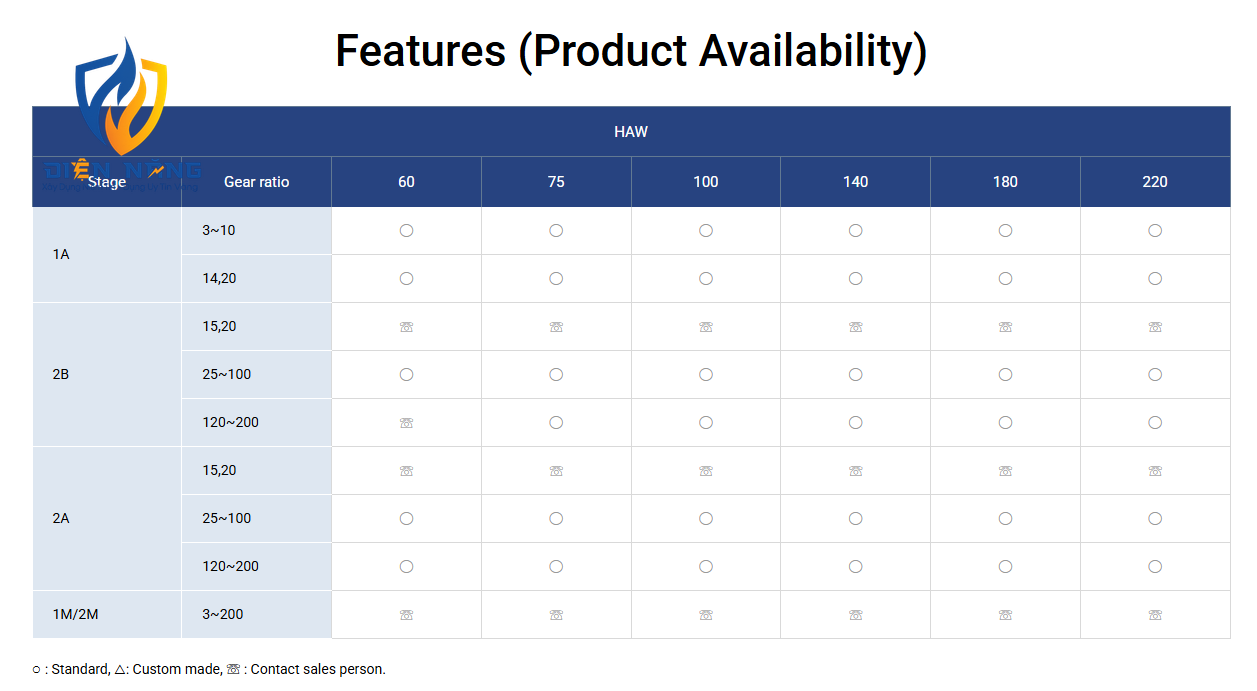

HAW Series Mặt bích đầu ra vuông Hộp giảm tốc kiểu góc vuông: Tiêu chuẩn / Cao cấp / Nâng cao Contact us Features Chọn kích cỡ tại đây Specification Please contact LS ELECTRIC sales person for ★ gear ratio. (1) Considering safety factors, nominal output torque is calculated (2) Max. output torque is equivalent to 60% of the emergency stop torque More Information DivisionStageGear ratio060075100140180220 Nominal Output Torque (Nm)13571482724848971,585 4511432955491,0601,752 5541603326341,1952,005 6501513115921,1091,906 7481453055621,1041,835 8441322795271,0351,712 9421232544839471,597 10141212625009801,640 14441453055621,1041,835 15------ 20424542625009801,640 225541603326341,1952,005 30501513115921,1091,906 35481453055621,1041,835 40441322795271,0351,712 45421232544839471,597 50541603326341,1952,005 60501513115921,1091,906 70481453055621,1041,835 80441322795271,0351,712 90421232544839471,597 100421212625009801,640 120-1513115921,1091,906 140-1453055621,1091,906 160-1322795271,0351,712 180-1232544839471,597 200-1212625009801,640 Emergency Stop Torque (Nm)1,23~2003 times nominal output torque Nominal Input Speed (rpm)1,23~2005,0004,0004,0003,0003,0002,000 Max. Input Speed (rpm)1,23~20010,0008,0008,0006,0006,0004,000 Torsional Rigidity (Nm/Arcmin)1,23~2003142655143233 Max. Radial Load (N)1,23~2001,5363,8408,16011,16018,12060,000 Max. Axial Load (N)1,23~2008281,9204,0805,4009,00033,600 Backlash (Arcmin)S13~20≤ 8≤ 8≤ 8≤ 8≤ 8≤ 8 225~200≤ 11≤ 11≤ 11≤ 11≤ 11≤ 11 P13~20≤ 6≤ 6≤ 6≤ 6≤ 6≤ 6 225~200≤ 9≤ 9≤ 9≤ 9≤ 9≤ 9 A13~20≤ 4≤ 4≤ 4≤ 4≤ 4≤ 4 225~200≤ 7≤ 7≤ 7≤ 7≤ 7≤ 7 Service Life (Hrs)1,23~20020,000 (10,000 under continuous operation) Efficiency (%)13~20≥ 97 225~100≥ 94 Weight (kg)1A3~20≤ 1.7≤ 6.2≤ 12.4≤ 26.0≤ 52.5≤ 86.0 2A25~200≤ 2.2≤ 7.7≤ 13.9≤ 28.0≤ 56.0≤ 93.0 2B25~200≤ 2.1≤ 7.5≤ 13.2≤ 27.0≤ 54.5≤ 89.0 Operating Temp (℃)1,23~200-10 ~ 90 Lubrication1,23~200Grease (VIGO Grease RE #0) Degree of Gearbox Protection1,23~200IP65 Noise (dB)1,23~200≤ 60≤ 63≤ 66≤ 69≤ 72≤ 74 Inertia (㎏㎠)1A3~100.362.276.8823.5069.20134.70 14,200.081.896.2321.7566.30120.50 2B15,20------ 25~1000.090.362.276.8823.5069.20 120~200-0.321.896.2321.7566.30 2A15,20------ 25~1000.362.276.8823.5069.20134.70 120~200-1.896.2321.7566.30120.50
