Sản phẩm cần báo giá theo số lượng, công suất hoặc dự án. Gửi yêu cầu để được tư vấn nhanh.
Tổng quan
DC CHARGER Bộ Sạc Nhanh Công Suất Cao 50~100kW Loại sạc: Sạc nhanh DC (dòng điện một chiều) Công suất: Từ 50kW đến 100kW Tính năng: Hỗ trợ sạc tốc độ cao, rút ngắn thời gian nạp điện cho xe điện Contact us Features Hiệu suất năng lượng cao nhất tại Hàn Quốc Thiết kế tản nhiệt thông gió trực tiếp, tăng cường độ ổn định hệ thống Cấu trúc kín đạt cấp bảo vệ IP44, chống bụi và nước ở mức cơ bản Hệ thống quản lý trực quan và tiện lợi, dễ sử dụng và giám sát Specification 100kW DC Charger 50kW DC Charger TypeSpecification ModelLECF100-2M15S AC InputPhase/Lines3-Phase + Neutral + PE Voltage380V Frequency60Hz DC OutputVoltage200~600V Current200A Power100kW Electrical ParameterPower Factor≥ 0.95 (50%~100% load) THD≤ 0.05 (50%~100% load) Voltage Accuracy±0.5% Current Accuracy±1.0% Efficiency95.2% Structure DesignHousing MaterialGalvanized steel Installation MethodFloor-stand Charging TimeAround 45 minutes (Based on EV battery 72kWh) OutputFor single charging of one electric vehicle : 100kW/h For simultaneous charging of two electric vehicles : 50 kW/h each Charging Outlet2 Charging guns (SAE Combo Type1/ SAE Combo Type1) CableRated : DC 600V, 200A / Length : 5m / Diameter : 70mm2 LED indicator2 Indicators (DC COMBO 1, DC COMBO 2) LCD size15-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number, Credit card reader(Optional) Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 61815-23:2014 Dimension (W×D×H)874×567×1830mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)720×460mm TypeSpecification ModelLECF050-1M10S AC InputPhase/Lines3-Phase + Neutral + PE Voltage380V Frequency60Hz DC OutputVoltage200~600V Current120A Power50kW Electrical ParameterPower Factor≥ 0.95 (50%~100% load) THD≤ 0.05 (50%~100% load) Voltage Accuracy±0.5% Current Accuracy±1.0% Efficiency96.7% Structure DesignHousing MaterialGalvanized steel Installation MethodFloor-stand Charging TimeAround 90 minutes (Based on EV battery 72kWh) OutletFor single charging of one electric vehicle : 50 kW/h Charging Outlet1 Charging gun (SAE Combo Type1) CableRated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 LED indicator2 Indicators (POWER, DC COMBO) LCD size10-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number, Credit card reader(Optional) Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC61815-23:2014 Dimension (W×D×H)802×411×1830mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)720×340mm More Information TypeSpecification ModelLECF050-1M10S AC InputPhase/Lines3-Phase + Neutral + PE Voltage380V Frequency60Hz DC OutputVoltage200~600V Current120A Power50kW Electrical ParameterPower Factor≥ 0.95 (50%~100% load) THD≤ 0.05 (50%~100% load) Voltage Accuracy±0.5% Current Accuracy±1.0% Efficiency96.7% Structure DesignHousing MaterialGalvanized steel Installation MethodFloor-stand Charging TimeAround 90 minutes (Based on EV battery 72kWh) OutletFor single charging of one electric vehicle : 50 kW/h Charging Outlet1 Charging gun (SAE Combo Type1) CableRated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 LED indicator2 Indicators (POWER, DC COMBO) LCD size10-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number, Credit card reader(Optional) Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC61815-23:2014 Dimension (W×D×H)802×411×1830mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)720×340mm
| THD | ≤ 0.05 (50%~100% load) |
|---|---|
| Type | Specification |
| Cable | Rated : DC 600V, 200A / Length : 5m / Diameter : 70mm2 | Rated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 |
| Model | LECF100-2M15S | LECF050-1M10S |
| Power | 100kW | 50kW |
| Outlet | For single charging of one electric vehicle : 50 kW/h |
| Output | For single charging of one electric vehicle : 100kW/h For simultaneous charging of two electric vehicles : 50 kW/h each |
| Current | 200A | 120A |
| Voltage | 380V |
| AC Input | Phase/Lines | 3-Phase + Neutral + PE |
| Altitude | 1,000m or less |
| Humidity | 5% ~ 95% RH(Non-condensing) |
| LCD size | 15-inch LCD (Touch Screen) | 10-inch LCD (Touch Screen) |
| DC Output | Voltage | 200~600V |
| Frequency | 60Hz |
| CableRated | DC 600V, 200A / Length : 5m / Diameter : 70mm2 | DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 |
| Efficiency | 95.2% | 96.7% |
| Loại sạc | Sạc nhanh DC (dòng điện một chiều) Công suất: Từ 50kW đến 100kW Tính năng: Hỗ trợ sạc tốc độ cao, rút ngắn thời gian nạp điện cho xe điện |
| Charging Time | Around 45 minutes (Based on EV battery 72kWh) | Around 90 minutes (Based on EV battery 72kWh) |
| LED indicator | 2 Indicators (DC COMBO 1, DC COMBO 2) | 2 Indicators (POWER, DC COMBO) |
| Emergency Stop | Button type |
| Charging Outlet | 2 Charging guns (SAE Combo Type1/ SAE Combo Type1) | 1 Charging gun (SAE Combo Type1) |
| Payment Methods | RFID card, Membership number, Credit card reader(Optional) |
| Safety Standard | IEC 61851-1:2017, IEC 61815-23:2014 | IEC 61851-1:2017, IEC61815-23:2014 |
| Thương hiệu | LS Electric |
| Current Accuracy | ±1.0% |
| Protection Grade | IP44 |
| Structure Design | Housing Material | Galvanized steel |
| Voltage Accuracy | ±0.5% |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |

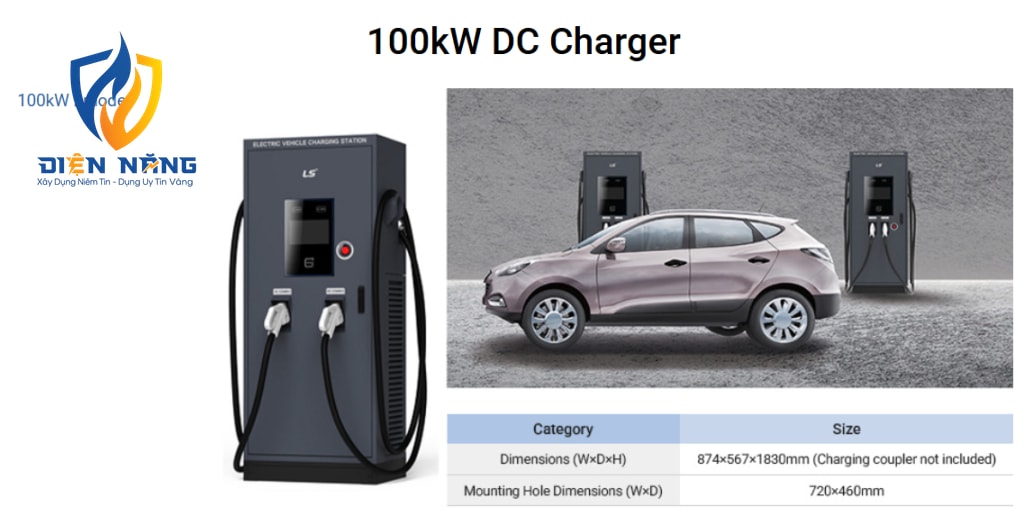

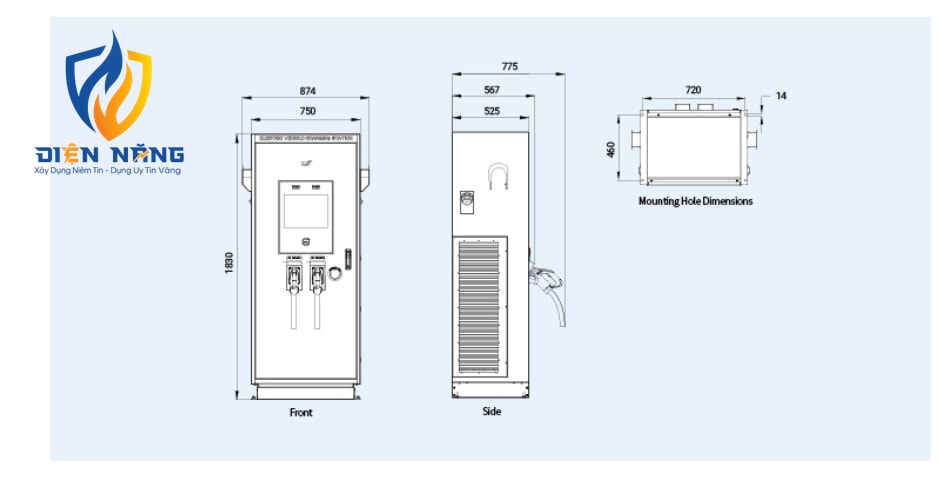

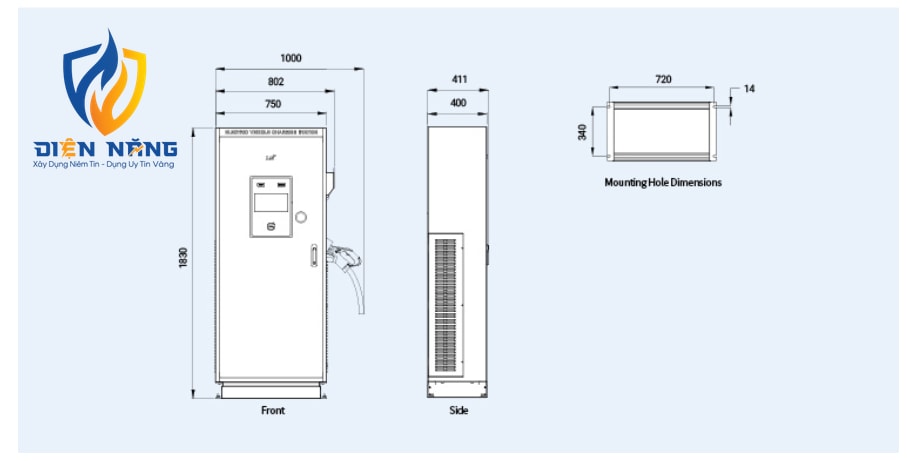

| Dimension (W×D×H) | 874×567×1830mm (Excluding the charging coupler) | 802×411×1830mm (Excluding the charging coupler) |
| Installation Method | Floor-stand |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection |
| Communication Method | TCP/IP |
| Electrical Parameter | Power Factor | ≥ 0.95 (50%~100% load) |
| Installation Location | Indoor / Outdoor |
| Safety StandardIEC 61851-1 | 2017, IEC 61815-23:2014 | 2017, IEC61815-23:2014 |
| Mounting Hole Dimensions (W×D) | 720×460mm | 720×340mm |
| OutletFor single charging of one electric vehicle | 50 kW/h |
| OutputFor single charging of one electric vehicle | 100kW/h |
| For simultaneous charging of two electric vehicles | 50 kW/h each |
Bộ Sạc Nhanh Công Suất Cao 50~100kW Loại sạc: Sạc nhanh DC (dòng điện một chiều) Công suất: Từ 50kW đến 100kW Tính năng: Hỗ trợ sạc tốc độ cao, rút ngắn thời gian nạp điện cho xe điện Contact us Features Hiệu suất năng lượng cao nhất tại Hàn Quốc Thiết kế tản nhiệt thông gió trực tiếp, tăng cường độ ổn định hệ thống Cấu trúc kín đạt cấp bảo vệ IP44, chống bụi và nước ở mức cơ bản Hệ thống quản lý trực quan và tiện lợi, dễ sử dụng và giám sát Specification 100kW DC Charger 50kW DC Charger TypeSpecification ModelLECF100-2M15S AC InputPhase/Lines3-Phase + Neutral + PE Voltage380V Frequency60Hz DC OutputVoltage200~600V Current200A Power100kW Electrical ParameterPower Factor≥ 0.95 (50%~100% load) THD≤ 0.05 (50%~100% load) Voltage Accuracy±0.5% Current Accuracy±1.0% Efficiency95.2% Structure DesignHousing MaterialGalvanized steel Installation MethodFloor-stand Charging TimeAround 45 minutes (Based on EV battery 72kWh) OutputFor single charging of one electric vehicle : 100kW/h For simultaneous charging of two electric vehicles : 50 kW/h each Charging Outlet2 Charging guns (SAE Combo Type1/ SAE Combo Type1) CableRated : DC 600V, 200A / Length : 5m / Diameter : 70mm2 LED indicator2 Indicators (DC COMBO 1, DC COMBO 2) LCD size15-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number, Credit card reader(Optional) Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 61815-23:2014 Dimension (W×D×H)874×567×1830mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)720×460mm TypeSpecification ModelLECF050-1M10S AC InputPhase/Lines3-Phase + Neutral + PE Voltage380V Frequency60Hz DC OutputVoltage200~600V Current120A Power50kW Electrical ParameterPower Factor≥ 0.95 (50%~100% load) THD≤ 0.05 (50%~100% load) Voltage Accuracy±0.5% Current Accuracy±1.0% Efficiency96.7% Structure DesignHousing MaterialGalvanized steel Installation MethodFloor-stand Charging TimeAround 90 minutes (Based on EV battery 72kWh) OutletFor single charging of one electric vehicle : 50 kW/h Charging Outlet1 Charging gun (SAE Combo Type1) CableRated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 LED indicator2 Indicators (POWER, DC COMBO) LCD size10-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number, Credit card reader(Optional) Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC61815-23:2014 Dimension (W×D×H)802×411×1830mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)720×340mm More Information TypeSpecification ModelLECF050-1M10S AC InputPhase/Lines3-Phase + Neutral + PE Voltage380V Frequency60Hz DC OutputVoltage200~600V Current120A Power50kW Electrical ParameterPower Factor≥ 0.95 (50%~100% load) THD≤ 0.05 (50%~100% load) Voltage Accuracy±0.5% Current Accuracy±1.0% Efficiency96.7% Structure DesignHousing MaterialGalvanized steel Installation MethodFloor-stand Charging TimeAround 90 minutes (Based on EV battery 72kWh) OutletFor single charging of one electric vehicle : 50 kW/h Charging Outlet1 Charging gun (SAE Combo Type1) CableRated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 LED indicator2 Indicators (POWER, DC COMBO) LCD size10-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number, Credit card reader(Optional) Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC61815-23:2014 Dimension (W×D×H)802×411×1830mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)720×340mm
