Sản phẩm cần báo giá theo số lượng, công suất hoặc dự án. Gửi yêu cầu để được tư vấn nhanh.
Tổng quan
Bộ Sạc AC (AC Charger) Bộ Sạc Chậm 7kW / 14kW (Sạc AC) Loại sạc: Sạc chậm AC (dòng điện xoay chiều) Công suất: 7kW và 14kW Contact us Features Thiết kế đẹp mắt với mặt kính cường lực (tempered glass) Cấu trúc mô-đun, dễ dàng mở rộng và vận hành Cấu trúc kín đạt chuẩn IP44, chống bụi và nước phù hợp cho lắp đặt ngoài trời Hệ thống quản lý trực quan và tiện lợi, giúp người dùng dễ vận hành và giám sát 14kW AC Charger 14kW B Type 14kW B-C Type 7kW AC Charger 7kW B Type 7kW B-C Type Specification 14kW AC Charger 14kW B Type 14kW B-C Type TypeSpecification ModelLECS014-2CH07BS AC InputPhase/Lines1 Phase + Neutral + PE Voltage220V Frequency60Hz AC OutputVoltage220V Current64A (2CH×32A) Power14kW Structure DesignPanel MaterialGalvanized steel Glass MaterialTemper glass Installation MethodFloor-stand Charging TimeAround 10 hours (Based on EV battery 72kWh / 2Channel) OutputFor single charging of one electric vehicle : 7 kW/h For simultaneous charging of two electric vehicles : 7 kW/h each Charging Outlet2 Charging sockets (Type1) Cable/socketCable-Not included Socket - Rated : AC250V, 32A LED indicator2 indicators (AC 1, AC 2) LCD size7-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 62196-2:2016 Dimension (W×D×H)350×244×1600 mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)312×142mm 7kW AC Charger 7kW B Type TypeSpecification ModelLECS014-2CH07BCS AC InputPhase/Lines1 Phase + Neutral + PE Voltage220V Frequency60Hz AC OutputVoltage220V Current64A (2CH×32A) Power14kW Structure DesignPanel MaterialGalvanized steel Glass MaterialTemper glass Installation MethodFloor-stand Charging TimeAround 10 hours (Based on EV battery 72kWh / 2Channel) OutputFor single charging of one electric vehicle : 7 kW/h For simultaneous charging of two electric vehicles : 7 kW/h each Charging Outlet1 Charging gun (Type1) 1 Charging socket (Type1) Cable/socketCable -Rated: AC240V, 32A /L: 5m/ D: 6 mm2 Socket -Rated: AC250V, 32A LED indicator2 indicators (AC 1, AC 2) LCD size7-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 62196-2:2016 Dimension (W×D×H)402×244×1600 mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)312×142mm 7kW B-C Type TypeSpecification ModelLECS007-1CH07BS AC InputPhase/Lines1 Phase + Neutral + PE Voltage220V Frequency60Hz AC OutputVoltage220V Current32A Power7kW Structure DesignPanel MaterialGalvanized steel Glass MaterialTemper glass Installation MethodFloor-stand Charging TimeAround 10 hours (Based on EV battery 72kWh / 2Channels) OutputFor single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) Charging Outlet1 Charging socket (Type1) Cable/socketCable-Not included Socket - Rated : AC250V, 32A LED indicator1 Indicator LCD size7-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 62196-2:2016 Dimension (W×D×H)270×145×400 mm (With stand 270×235×1336 mm) Mounting Hole Dimensions (W×D)143×163mm 7kW B-C Type Wall Mount TypeSpecification ModelLECS007-1CH07BCS AC InputPhase/Lines1 Phase + Neutral + PE Voltage220V Frequency60Hz AC OutputVoltage220V Current32A Power7kW Structure DesignPanel MaterialGalvanized steel Glass MaterialTemper glass Installation MethodFloor-stand Charging TimeAround 10 hours (Based on EV battery 72kWh / 2Channels) OutputFor single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) Charging Outlet1 Charging gun (Type1) 1 Charging socket (Type1) Cable/socketCable -Rated: AC240V, 32A / L: 4m/D: 6mm2 Socket -Rated: AC250V, 32A LED indicator1 Indicator LCD size7-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 62196-2:2016 Dimension (W×D×H)270×145×400 mm (Excluding the charging coupler) (With stand 270×235×1336 mm) Mounting Hole Dimensions (W×D)143×163mm More Information TypeSpecification ModelLECS007-1CH07BCW AC InputPhase/Lines3-Phase + Neutral + PE Voltage220V Frequency60Hz AC OutputVoltage220V Current32A Power7kW Structure DesignPanel MaterialGalvanized steel Glass MaterialTemper glass Installation MethodWall Mounted Charging TimeAround 10 hours (Based on EV battery 72kWh / 2Channels) OutputFor single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) Charging Outlet1 Charging gun (Type1) 1 Charging socket (Type1) Cable/socketCable -Rated: AC240V, 32A / L: 4m / D: 6mm2 Socket -Rated: AC250V, 32A LED indicator1 Indicator LCD size7-inch LCD (Touch Screen) Communication MethodTCP/IP Emergency StopButton type Payment MethodsRFID card, Membership number Usage EnvironmentOperating Temperature-25℃ ~ +40℃ Humidity5% ~ 95% RH(Non-condensing) Altitude1,000m or less Protection GradeIP44 Installation LocationIndoor / Outdoor Protection FunctionOver/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection Safety StandardIEC 61851-1:2017, IEC 62196-2:2016 Dimension (W×D×H)270×164×400 mm (Excluding the charging coupler) Mounting Hole Dimensions (W×D)140×195mm (For wall surface)
| Type | Specification |
|---|---|
| Model | LECS014-2CH07BS | LECS014-2CH07BCS | LECS007-1CH07BS | LECS007-1CH07BCS | LECS007-1CH07BCW |
| Power | 14kW | 7kW |
| Output | For single charging of one electric vehicle : 7 kW/h For simultaneous charging of two electric vehicles : 7 kW/h each | For single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) |
| Current | 64A (2CH×32A) |
| Voltage | 220V |
| AC Input | Phase/Lines | 1 Phase + Neutral + PE | Phase/Lines | 3-Phase + Neutral + PE |
| Altitude | 1,000m or less |
| Humidity | 5% ~ 95% RH(Non-condensing) |
| LCD size | 7-inch LCD (Touch Screen) |
| AC Output | Voltage | 220V |
| Frequency | 60Hz |
| Cable/socket | Cable-Not included Socket - Rated : AC250V, 32A | Cable -Rated: AC240V, 32A /L: 5m/ D: 6 mm2 Socket -Rated: AC250V, 32A | Cable -Rated: AC240V, 32A / L: 4m/D: 6mm2 Socket -Rated: AC250V, 32A | Cable -Rated: AC240V, 32A / L: 4m / D: 6mm2 Socket -Rated: AC250V, 32A |
| Loại sạc | Sạc chậm AC (dòng điện xoay chiều) Công suất: 7kW và 14kW |
| Charging Time | Around 10 hours (Based on EV battery 72kWh / 2Channel) | Around 10 hours (Based on EV battery 72kWh / 2Channels) |
| LED indicator | 2 indicators (AC 1, AC 2) | 1 Indicator |
| Socket -Rated | AC250V, 32A |
| Emergency Stop | Button type |
| Glass Material | Temper glass |
| Socket - Rated | AC250V, 32A |
| Charging Outlet | 2 Charging sockets (Type1) | 1 Charging gun (Type1) 1 Charging socket (Type1) |
| Payment Methods | RFID card, Membership number |
| Safety Standard | IEC 61851-1:2017, IEC 62196-2:2016 |
| Thương hiệu | LS Electric |
| Protection Grade | IP44 |
| Structure Design | Panel Material | Galvanized steel |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |

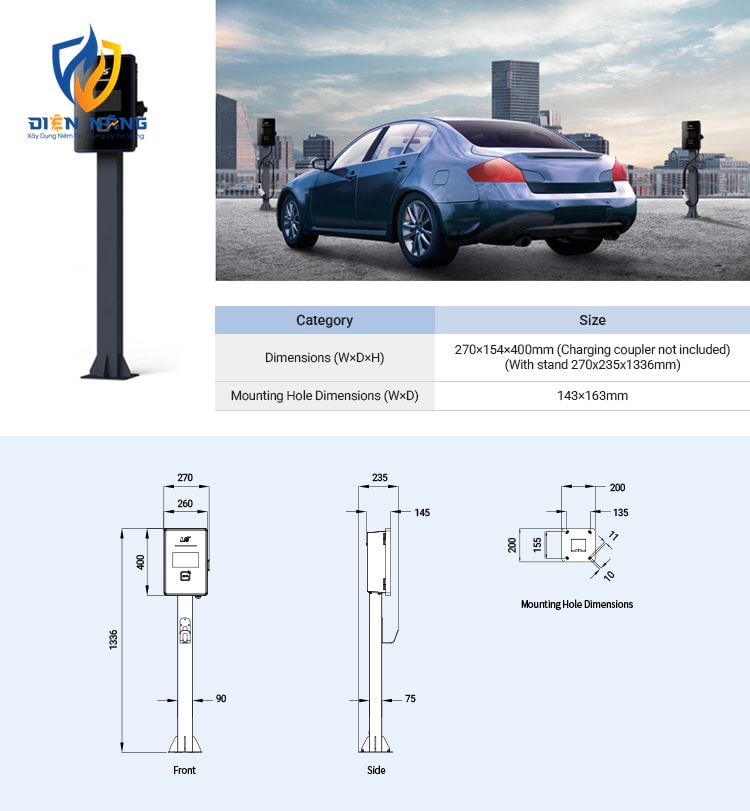

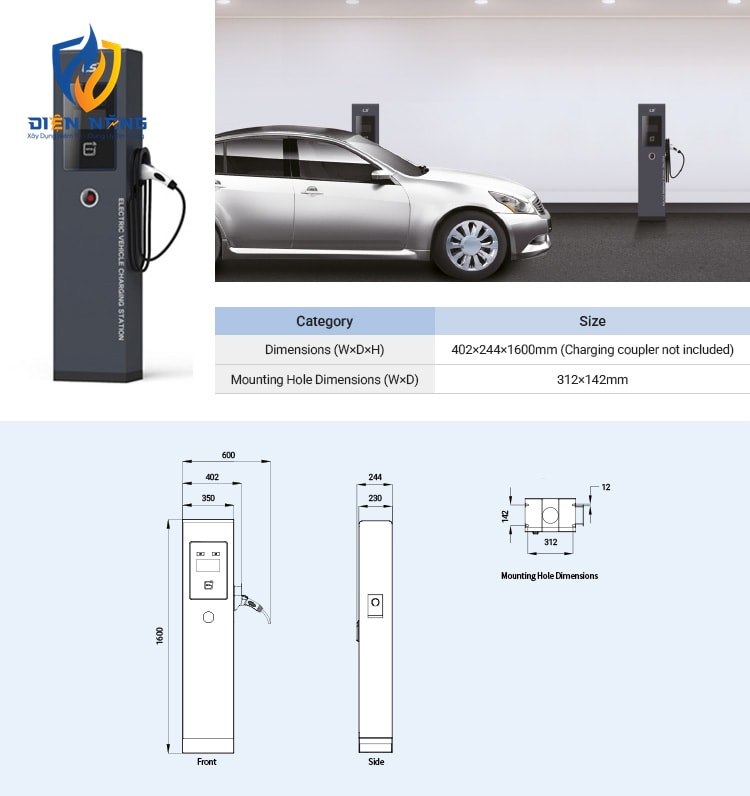

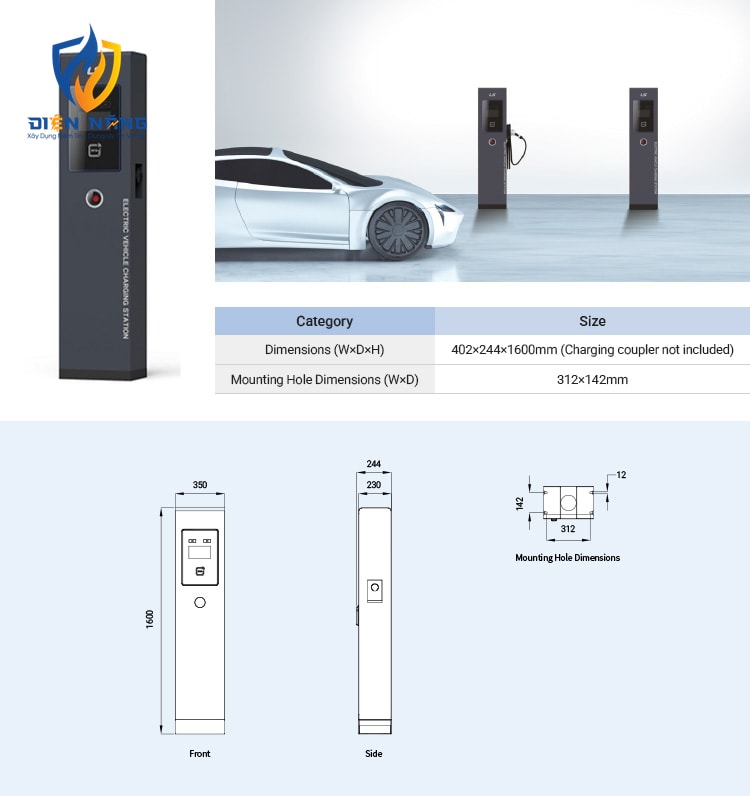

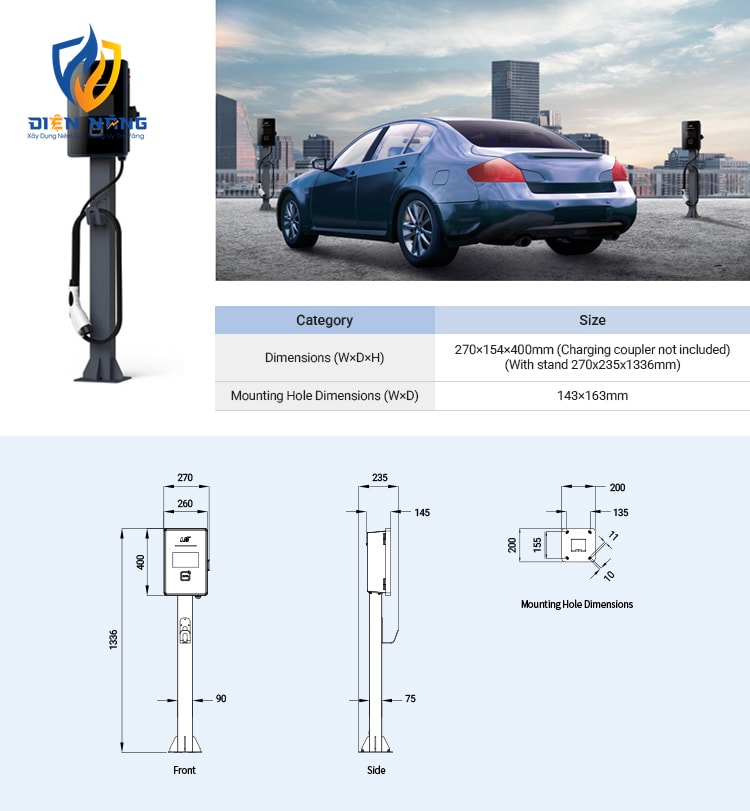

| Dimension (W×D×H) | 350×244×1600 mm (Excluding the charging coupler) | 402×244×1600 mm (Excluding the charging coupler) | 270×145×400 mm (With stand 270×235×1336 mm) | 270×145×400 mm (Excluding the charging coupler) (With stand 270×235×1336 mm) | 270×164×400 mm (Excluding the charging coupler) |
| Installation Method | Floor-stand | Wall Mounted |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection |
| Communication Method | TCP/IP |
| Installation Location | Indoor / Outdoor |
| Cable/socketCable -Rated | AC240V, 32A /L: 5m/ D: 6 mm2 Socket -Rated: AC250V, 32A | AC240V, 32A / L: 4m/D: 6mm2 Socket -Rated: AC250V, 32A | AC240V, 32A / L: 4m / D: 6mm2 |
| Safety StandardIEC 61851-1 | 2017, IEC 62196-2:2016 |
| Mounting Hole Dimensions (W×D) | 312×142mm | 143×163mm | 140×195mm (For wall surface) |
| OutputFor single charging of one electric vehicle | 7 kW/h |
| For simultaneous charging of two electric vehicles | 7 kW/h each |
